Brand: Hoffman
|
SKU:
650939

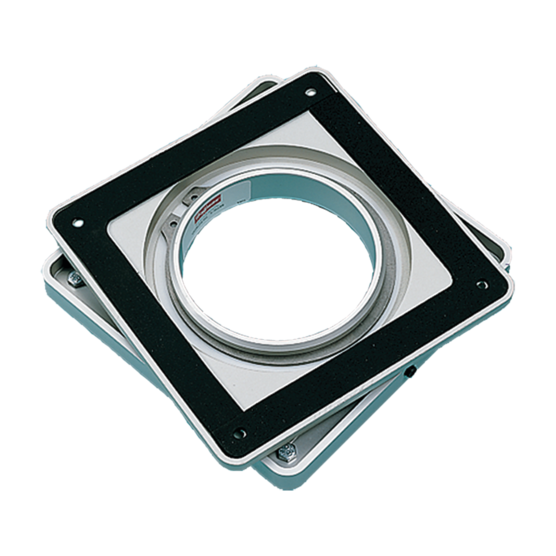

Hoffman ASWV44 | Swivel for Pedestal, 1.06x4.00x4.00, Aluminum
Regular price
$1,050.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ASWV44 | Swivel for Pedestal, 1.06x4.00x4.00, Aluminum
Regular price
$1,050.38
Unit price
Description
Description
A swivel mechanism provides an easy way to rotate an HMI enclosure to a convenient operating position. It is designed for use between the bottom of an HMI enclosure and a pedestal. The swivel is low-profile and has a large center opening in addition to a large, wobble-free bearing surface. Swivel mechanism can be locked in any position for safe operation.
Main Features
- Swivel allows 350-degree maximum rotation
- Hardware and gasket to attach enclosure are included
- ASWV88 has integral stops at 30-degree increments between 60 degrees and 180 degrees of rotation
- Do not use the swivel between an overhead support and an enclosure
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: ASWV88
- Catalog #: ASWV44
Specifications
| Height | 1.06 in / 27 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 4 in / 102 mm |
| Material | Aluminum |
| Max Enclosure Size | 610 x 610 x 406 mm / 24.00 x 24.00 x 16.00 in |
| Max Load, Including Enclosure | 45.4 kg / 100 lb |
| Color | Unpainted |
| Finish | Anodized |
| Thickness | 0.15 in / 3.81 mm |
| Weight | 1.2 lb |
| BULLETIN NUMBER | P1 |
