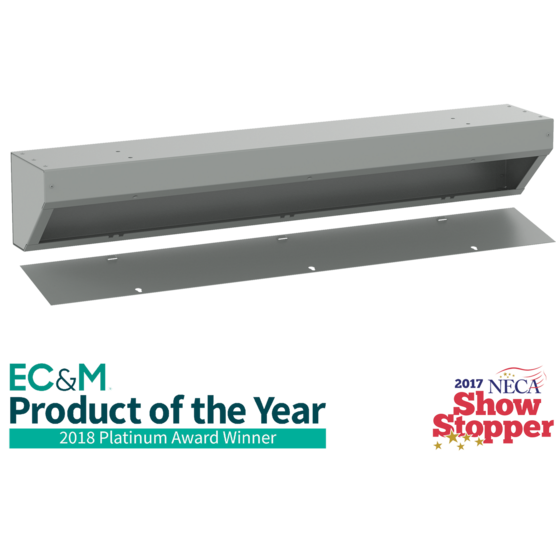

Hoffman AT8824 | Angled Trough, NEMA Type 1, 8x8x24, Gray, Steel
Regular price
$89.12
Unit price
Brand: Hoffman
|
SKU:
9886131
Regular price
$89.12
Unit price
Description
Description
Angled Trough, Type 1 cuts total installation time by 80%. It eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution, making it a time and cost saving solution. The unique design allows conduit runs through the front of the enclosure, and can be mounted in any corner.
Main Features
- Flexible install allows conduit runs through six sides of enclosure, including the front
- Cleaner appearance requiring less real estate on the wall
- Uniquely designed cover is removable and easy to assemble with half the number of screws
- Easy mounting via holes on the back of the enclosure
- Shipped completely assembled with no end caps to install
Specifications
Specifications
Industry Standards
- UL 870 Listed; File No. E27524
- cUL CSA C22.2 No. 26 Listed; File No. E27524
- NEMA/EEMAC: Type 1
- IEC 60529, IP30
Specifications
| Type | Trough |
|---|---|
| Height | 8 in / 203 mm |
| Width | 8 in / 203 mm |
| Depth | 24 in / 610 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Max Conduit Size | 2 in / 51 mm |
| Cover Screw Quantity | 2 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| BULLETIN NUMBER | F40AT |
