Brand: Hoffman
|
SKU:
650981

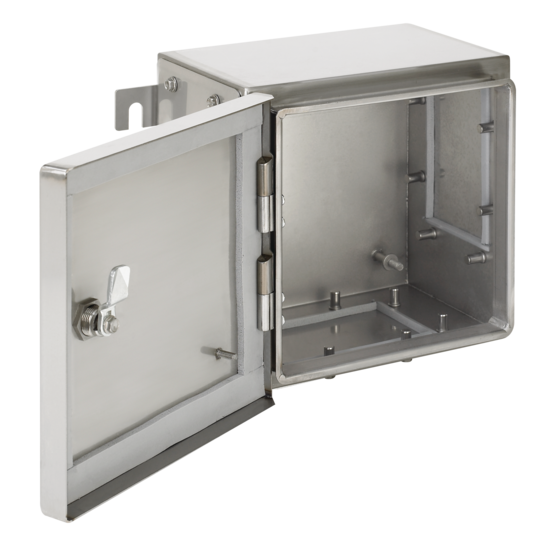

Hoffman ATEX624520SS63 | Zonex ATEX- and IECEx-Certified, Type 4X, 620x450x205mm, 316SS, 3 GP
Regular price
$4,427.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ATEX624520SS63 | Zonex ATEX- and IECEx-Certified, Type 4X, ...
Regular price
$4,427.62
Unit price
Description
Description
Zonex Enclosures are designed and certified to meet ATEX Directive 2014/35/EU as well as IECEx and AEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications. nVent HOFFMAN ATEX Ex e enclosures are not intended for use in explosion-proof or flame-proof applications.
Main Features
- Type 316 stainless steel quarter-turn door latching
- 3-mm double-bit insert for security
- Slot and through-hole side-mount hanging brackets
- Lift-off door hinges
- Removable gland plates; one or three gland plates standard
- Internal/external brass earth/ground provision
- Type 316 stainless steel external fasteners
- Gray silicone high-temperature gasket on doors and gland plates; operating temperature range -55 C to +180 C
Specifications
Specifications
Industry Standards
- UL File E67456 Class I, Zone I
- AEx eb IIC Tamb -50C to +80C
- Ex eb IIC U Tamb -50C to +80C
- UL 508A Listed; Type 4, 4X, 12; File No. E61997
- cUL C22.2 No. 94 Listed; Type 4, 4X, 12; File No. E61997
- ATEX Directive 2014/34/EU
- ATEX
- Sira 09ATEX3224U
- Ex eb IIC Gb
Related Accessories
- Catalog #: EXWK53SS6
- Catalog #: VHL09160
Specifications
| Height | 24.41 in / 620 mm |
|---|---|
| Width | 17.72 in / 450 mm |
| Depth | 8.07 in / 205 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 316L |
| Panel Size | 22.61 x 15.92 in / 574 x 404 mm |
| Conductive Panel | ATEX62P45G |
| Gland Plate Quantity | 3 |
| White Panel | ATEX62P45 |
| Color | Unpainted |
| Finish | Brushed #3 |
| Thickness | 16 ga / 1.4 mm |
| BULLETIN NUMBER | HL |
