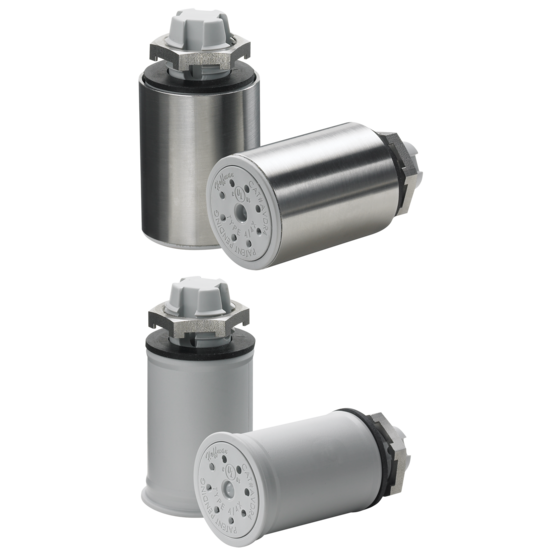

Hoffman AVDR4SS4 | H2Omit Vent Drain, 2.64x1.38x1.38, SS Type 304
Regular price
$215.76
Unit price
Description
Description
H2Omit Vent Drains allow accumulated water to drain out the bottom of an enclosure. The UL-approved vent drains also function as an air pressure equalizer, reducing the harmful effects of temperature-induced vacuums that could pull water and moisture into the enclosure.
Main Features
- Uses gravity to remove collected liquids
- One-way mechanical shut-off when pressure is equalized prevents water and contaminants from entering the enclosure
- Helps reduce corrosion that can limit the life of internal electrical and electronic components
- Installs in a 7/8-inch hole in the bottom of enclosure with provided nut or in a 1/2-inch NPT/NPS threaded conduit hub
- Installs in the bottom of mild steel, aluminum, stainless steel or non-metallic enclosures
- Maintains the enclosure UL Type rating when properly installed
- Stainless Steel Vent Drain
- Corrosion-resistant polyester material with a Type 304 stainless steel sleeve
- Non-Metallic Drain Vent
- Corrosion-resistant polyester material
- 2.00-inch long x 1.25-inch outside diameter
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X; File No. E61997
- Maintains UL/cUL Type 4, 4X rating when properly installed on a UL/cUL Type 4 or 4X enclosure.
- NEMA/EEMAC Type 4, 4X
- IEC 60529, IP66
Hoffman On Demand Alternatives
- Catalog #: AVDR4SS4
- Catalog #: AVDR4NM
Specifications
| Height | 2.64 in / 67.056 mm |
|---|---|
| Width | 1.38 in / 35.052 mm |
| Depth | 1.38 in / 35.052 mm |
| Material | Stainless Steel 304 |
| Finish | Brushed |
| Color | Unpainted |
| Diameter | 35 mm / 1.38 in |
| Weight | 0.25 lb |
| BULLETIN NUMBER | H2O |
