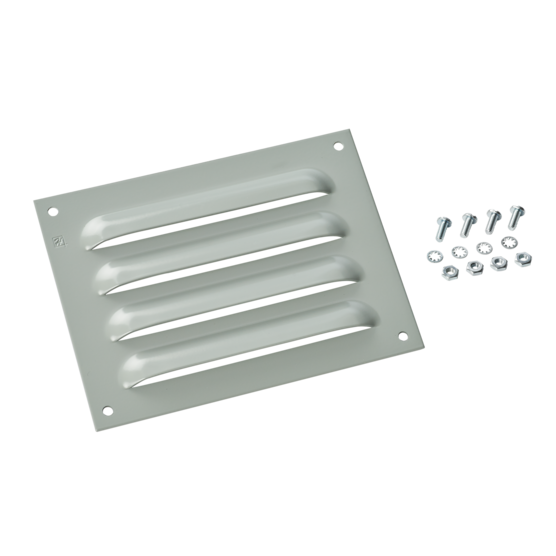

Hoffman AVK84SS6 | Louver Plate Kits, 5.81x9.50, SS Type 316
Regular price
$306.42
Unit price
Brand: Hoffman
|
SKU:
651052
Regular price
$306.42
Unit price
Description
Description
Designed to provide ventilation in enclosures where excessive internal heat or excessive moisture is a problem. Although louvers cannot keep all moisture out of an enclosure, gasketing or sealing the perimeter of the louver plate reduces problems associated with moisture intrusion. These kits may be easily installed in the field by making a cutout of the proper size and attaching the louver plate in place.
Main Features
- Mounting hardware included
- Custom sizes, materials, finishes, etc., can be provided on special order
Specifications
Specifications
Specifications
| Height | 5.81 in / 147.574 mm |
|---|---|
| Thickness | 14 ga / 1.9 mm |
| Width | 9.5 in / 241.3 mm |
| Depth | 0.31 in / 7.874 mm / 8 mm |
| Finish | Brushed |
| Color | Unpainted |
| Material | Stainless Steel 316L |
| Louvre Quantity | 4 |
| Usable Area | 8.08 in² / 52.12 cm² |
| Weight | 1.24 lb |
| BULLETIN NUMBER | D85 |
