Brand: Hoffman
|
SKU:
651074

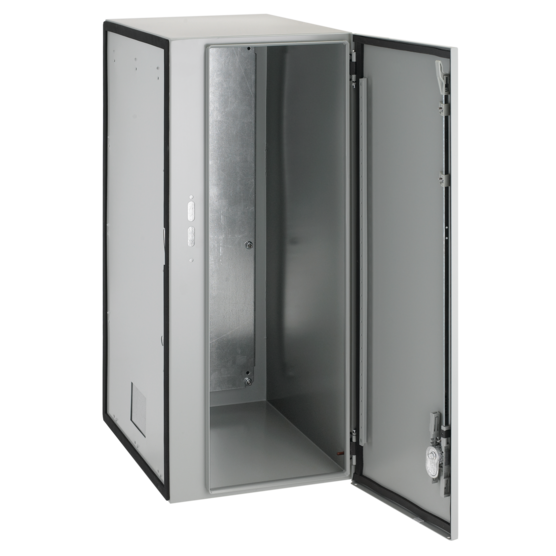

Hoffman AXD20 | Sequestr External Disconnect, Type 12, 34.45x14.00x20.12, Gray, Steel
Regular price
$2,084.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman AXD20 | Sequestr External Disconnect, Type 12, 34.45x14.00x...
Regular price
$2,084.17
Unit price
Description
Description
Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the Sequestr Enclosure. Power is passed-through to the main enclosure.
Reference the Specification Sheet for Optional Terminal Plates and Optional Replacement Conductive Panel tables.
Main Features
- Interlocks with doors of main control cabinet when the disconnect switch is powered ON
- Maintains UL Type 12 rating
- Provision for pass-through power into the main cabinet—blank plate for customer modification
- Preferred disconnect cutout
- Quarter-turn screwdriver slot latch
- Hidden hinges
- Bonding provision on door
- Conductive back panel included
- Installation hardware and templates included
- Continuously welded and ground seams all around
- Hinged on right side
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: A31P12G
- Catalog #: ATBP100
- Catalog #: ATBP200
- Catalog #: ATBP3060
Hoffman On Demand Alternatives
- Catalog #: AXD18
Specifications
| Height | 34.45 in / 875 mm |
|---|---|
| Width | 14 in / 356 mm |
| Depth | 20.12 in / 511 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 72.5 lb |
| BULLETIN NUMBER | A70D |
