Brand: Hoffman
|
SKU:
651077

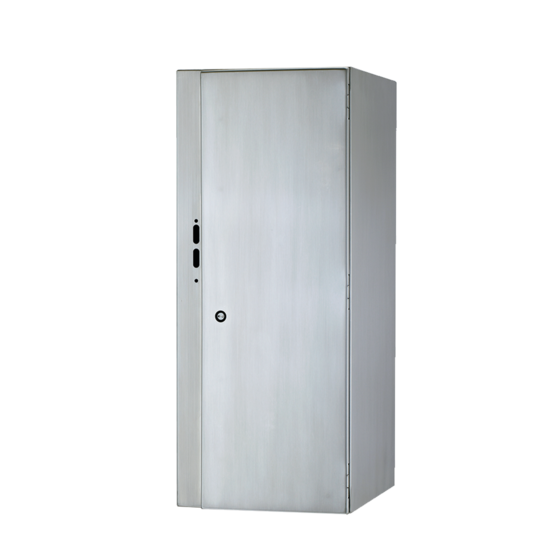

Hoffman AXD24SS | Sequestr, Retrofit External Disconnect, 4X, 24" Deep, SS 304
Regular price
$5,847.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman AXD24SS | Sequestr, Retrofit External Disconnect, 4X, 24&qu...
Regular price
$5,847.38
Unit price
Description
Description
Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the Sequestr Enclosure. Power is passed-through to the main enclosure.
Main Features
- Interlocks with doors of main control cabinet when the disconnect switch is powered ON
- Maintains UL Type 4X rating
- Provision for pass-through power into the main cabinet—blank plate for customer modification
- Preferred disconnect cutout
- Quarter-turn screwdriver slot and 3-point latch
- Hidden hinges
- Bonding provision on door
- Conductive back panel included
- Installation hardware and templates included
- Continuously welded and ground seams all around
- Hinged on right side
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: A31P12G
- Catalog #: ATBP100
- Catalog #: ATBP200
- Catalog #: ATBP3060
Specifications
| Height | 34.45 in / 875 mm |
|---|---|
| Width | 14 in / 356 mm |
| Depth | 24.12 in / 613 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 1.9 mm |
| Weight | 97 lb |
| BULLETIN NUMBER | A70DS |
