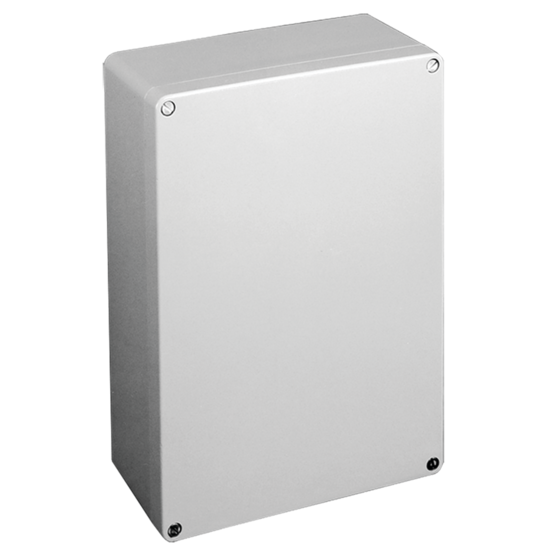

Hoffman CCA12128 | Aluminum Compact Type 4X, 122x122x80mm
Regular price
$227.59
Unit price
Brand: Hoffman
|
SKU:
651176
Regular price
$227.59
Unit price
Description
Description
For use in indoor or outdoor applications, these enclosures protect components and controls in corrosive environments.
A x B x C are internal dimensions.
Purchase panels separately
CCA886, CCA1286 and CCA1886 enclosures have only two mounting holes.
Main Features
- Cast Aluminum material
- No welded seams or sharp corners
- Stainless steel captivated cover screws placed outside sealed area
- Two to four grounding screws located on enclosure back wall
- Oil-resistant, seamless foam-in-place gasket
- Tongue-and-groove sealing construction
- Threaded internal bosses provided for mounting optional panels, rails and other components
- Mounting holes provided in corners outside of gasketed area
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050
Specifications
| Height | 4.8 in / 122 mm |
|---|---|
| Width | 4.8 in / 122 mm |
| Depth | 3.15 in / 80 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Aluminum |
| External Dimensions | 122 x 122 mm / 4.80 x 4.80 in |
| Conductive Panel | CCAP1212 |
| Panel Size | 1.29 x 4.23 mm / 109 x 108 in |
| Mounting | 82 x 106 mm / 3.23 x 4.17 in |
| Color | Traffic Gray |
| Color Code | RAL 7042 |
| Finish | Powder Coated |
| BULLETIN NUMBER | CA1 |
