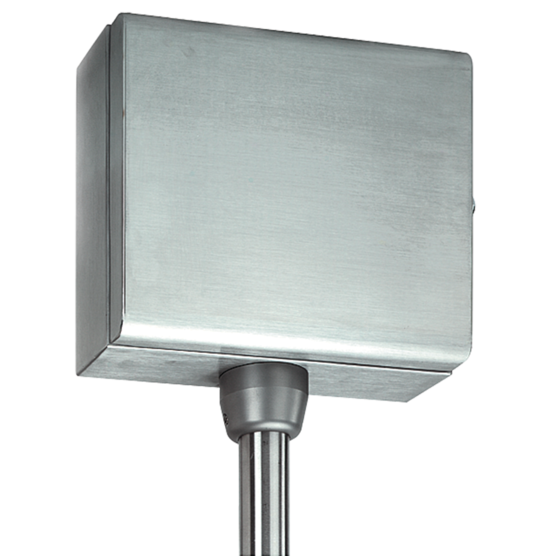

Hoffman CCC60S455521 | Stainless Steel HMI Enclosure, Type 4X, 450x500x210mm, CCC60 Cutout, SS Type 304
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CCC60S455521 | Stainless Steel HMI Enclosure, Type 4X, 450x...
Description
Description
A favorite with the food and pharmaceutical industries, these stainless steel, front-door control enclosures are ideal for applications that require corrosion resistance and the suspension of process and control equipment for easy cleaning and washdown. Pre-drilled hole is included for quick mounting to various support arm systems from top or bottom position. Option to install a mounting plate to mount equipment on the rear of the enclosure. Pins are provided on the rear enclosure for easy installation.
Use these enclosures with the CS480, Compact Series 2, Syspend 180-Max or Syspend 281-Max Support Arm Systems.
Main Features
- Stainless steel safety latch mounted at side, away from protected space
- Front door hinged on side
- Optional mounting plate to install in the rear of the enclosure
- Support arm system can be mounted from top or bottom
- Polyurethane foam gaskets
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 4X, 12; File No. E61997
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050SS
- Catalog #: TE121024011
Specifications
| Height | 17.72 in / 450 mm |
|---|---|
| Width | 21.65 in / 550 mm |
| Depth | 8.27 in / 210 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Use With Pendant Arm System | Compact Series 2, Syspend 180-Max or Syspend 281-Max |
| Door Clear Space | 370 x 440 mm / 14.57 x 17.32 in |
| Mounting Plate | CCCP4555 |
| Color | Unpainted |
| Finish | Brushed |
| Thickness | 16 ga / 1.5 mm |
| Weight | 31.2 lb |
| BULLETIN NUMBER | CCR6 |
