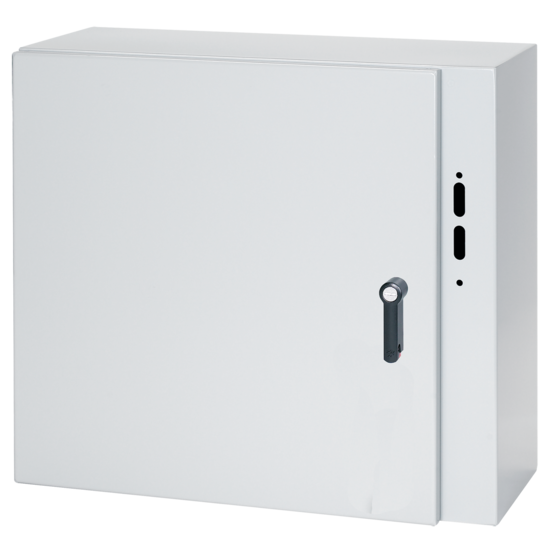

Hoffman CDSC30268SS | Concept, 304 SS Wallmount Disconnect Enclosure, 3 Pt Latch, 30x26x8
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CDSC30268SS | Concept, 304 SS Wallmount Disconnect Enclosur...
Description
Description
Use Concept Disconnect Enclosures in applications that require a preferred cutout that accepts major brand disconnect switches and circuit breakers.
Each Concept Disconnect Enclosure is furnished with an adjustable door interlock bracket fastened to the door, a Concept-style latching system (2-point or 3-point) installed on the door, instructions to locate and install the disconnect, and a hardware kit that includes a padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for the mounting holes.
Purchase panels separately.
Optional plated Concept panels available.
Optional NEMA style and stainless steel panels require conversion kit catalog number CCPM4.
NOTE: nVent HOFFMAN cannot guarantee compatibility of disconnect configurations with third-party latching.
Main Features
- Disconnect model of Concept enclosure series, includes 3 point latching for closure.
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange
- Integral door ramp to properly align door and gasket to body flange
- Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Standard full-access door opening
- Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Three-point door latching system installed on door interlocks with disconnect handle for added safety
- Adjustable door interlock bracket fastened to door
- Unique integrated door handle with tool-to-open feature and padlock option installed on door
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
Specifications
Specifications
Related Accessories
- Catalog #: AS050SS
- Catalog #: CMFKSS
- Catalog #: CMTGFT
- Catalog #: LEDA1S35
- Catalog #: LEDD1S35
- Catalog #: ADP2
- Catalog #: ADSTOPK
- Catalog #: ADSTOPKSS6
Specifications
| Height | 30 in / 762 mm |
|---|---|
| Width | 26 in / 660 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 13; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Stainless Steel Type | 304 |
| Concept Panel | CP3024 |
| Conductive Panel | CP3024G |
| Panel Size | 28.20 x 24.50 in / 716 x 564 mm |
| Mounting | 28.50 x 24.50 in / 724 x 622 mm |
| Color | Unpainted |
| Finish | Brushed #4 |
| BULLETIN NUMBER | CWSD |
