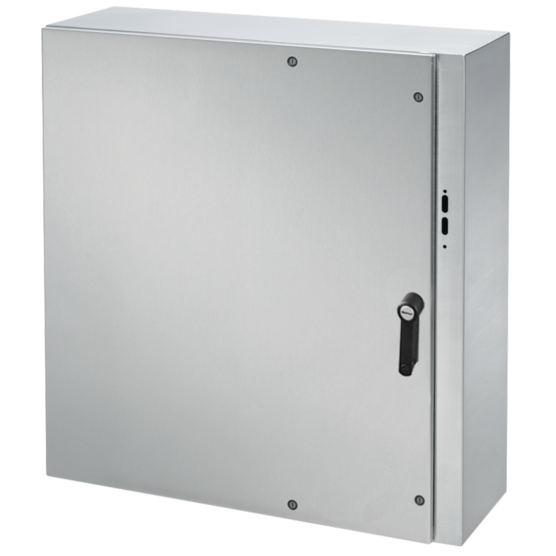

Hoffman CDSC423212SSR | Concept Wallmount Disconnect Enclosure 1/4-...
Description
Description
For use in disconnect applications that require larger controls, Concept Disconnect Enclosures feature two additional quarter-turn latches and a door-alignment device for secure closure and security.
Each Concept with Quarter-Turn Latches Disconnect Enclosure is furnished with adjustable door interlock bracket fastened to door, door latching system (2-point or 3-point) installed on door, instructions to locate and install disconnect, hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware, and sealing washers for mounting holes.
Enclosure doors have 2 quarter-turn latches and a handle with 2- or 3-point latch.
Purchase panels separately.
Optional plated Concept panels available.
Optional NEMA style and stainless steel panels require conversion kit catalog number CCPM4.
NOTE: nVent HOFFMAN cannot guarantee compatibility of disconnect configurations with third-party latching.
Main Features
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange
- Integral door alignment device to properly align door and gasket to body flange
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Standard full-access door opening
- Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Door latching system: latch installed on door with interlock mechanism on the disconnect handle for added safety; four quarter-turn latches also included
- Adjustable door interlock bracket fastened to door
- Unique integrated door handle with tool-to-open feature and padlock option installed on
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997
- Mounting brackets required to meet UL/cUL external mounting requirement.
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: N280416G051
- Catalog #: CMFKSS
- Catalog #: CMTGFT
- Catalog #: LEDA1S35
- Catalog #: LEDD1S35
- Catalog #: ADP2
- Catalog #: ADSTOPK
- Catalog #: ADSTOPKSS6
Specifications
| Height | 42 in / 1067 mm |
|---|---|
| Width | 32 in / 812 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 13; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Stainless Steel Type | 304 |
| Latch Style | 1 - 3-point |
| Concept Panel | CP4230 |
| Conductive Panel | CP4230G |
| Panel Size | 40.20 x 28.20 in / 1021 x 716 mm |
| Mounting | 40.50 x 30.45 in / 1029 x 773 mm |
| Color | Unpainted |
| BULLETIN NUMBER | CWSD |
