Description
Description

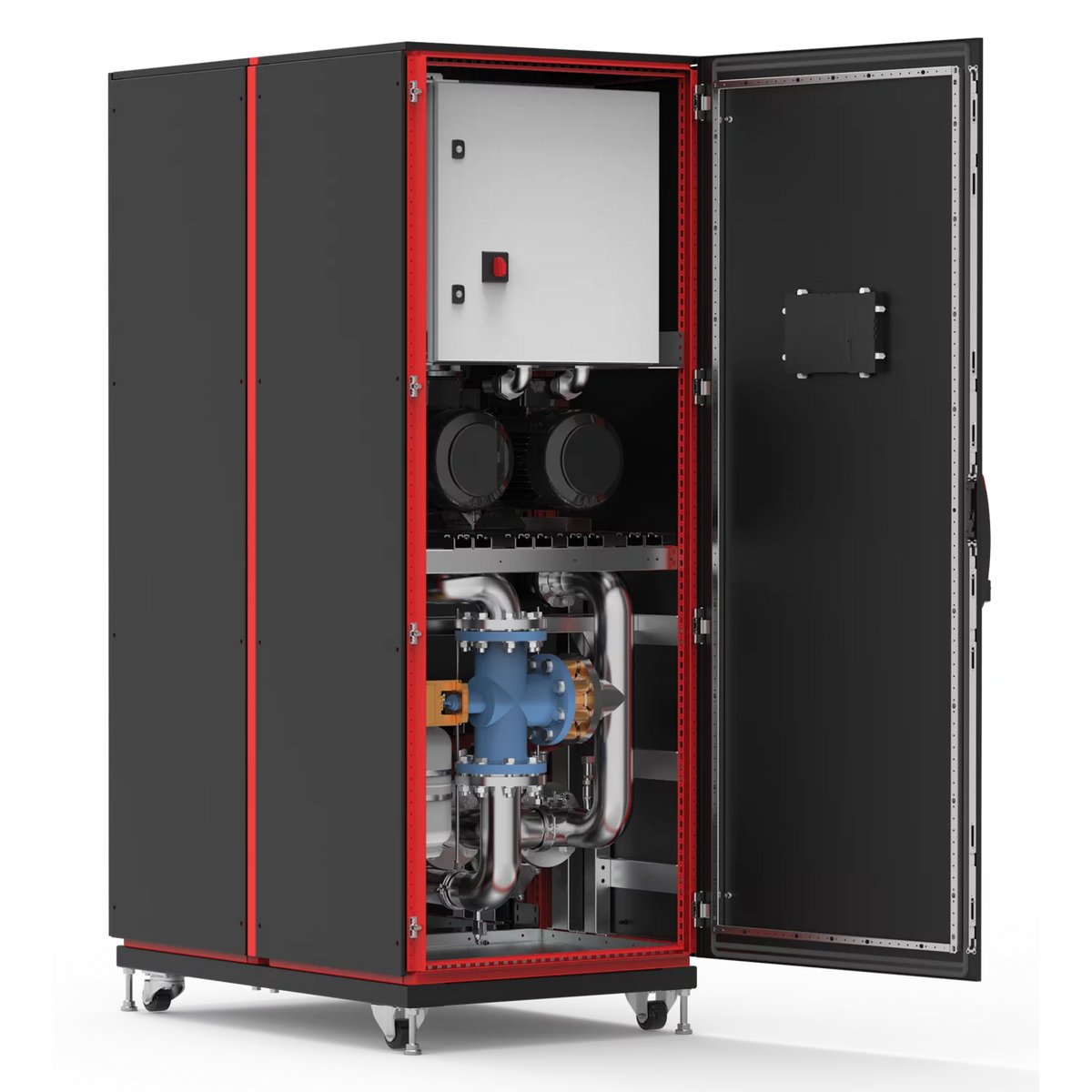

The nVent HOFFMAN RackChiller CDU800 is designed for efficient and safe supply of IT equipment. The entire system is focused on providing the highest reliability, availability, and serviceability for supporting direct-to-chip liquid cooling. The CDU800 is fed from a primary facility water system (FWS), where the integrated pumps drive the secondary technology cooling system (TCS) cooling loop flow. The heat exchanger transfers the excess heat from the secondary coolant to the primary. The complete system is integrated into an aesthetical enclosure with removable side panels and doors. The CDU can be installed onto a slab or raised floor, in-row with equipment racks or into a separate facility room.
Hoffman - CDU8004LA03A - Features
- 800+kW of cooling capacity @ 6K (850 LPM Primary)
- Redundant high-performance, leak-free pump system
- Integrated variable speed drives
- Coolant connections through top or bottom panel
- Integrated 10-inch touch panel display
- Remote control features through Ethernet, SNMP v3, Modbus
- On-board integrated leak detection
- Unrivaled power density – fits into standard data center footprint
- Serviceable during operation – no need for shut down during system maintenance
Specifications
Specifications
Hoffman - CDU8004LA03A - Specifications
| Voltage Rating | 380 – 480V |
|---|---|
| Phase Quantity | 3 |
| Rated Frequency | 50 – 60Hz |
| Rated Current/Rated Voltage | 40 |
| Power Consumption | 22.2W |
| Country of Origin | United States |
| Material | Mild Steel |
| Finish | Plated |
| Height (H) | 2200mm |
| Width (W) | 800mm |
| Depth (D) | 1200mm |
| Color | Black Grey |
| Color Code | RAL 7021 |
| Rated Load Current Range | 47.5A min |
| Noise Level | 68dB |
| Type | With Primary Filtration |
| UPC | 783510606459 |
| Standard Packaging Quantity | 1 |
