Hoffman CEL550M | Compact LED Light, CEL, 396x33x40mm, Black, Plast...
Regular price
$328.04
Unit price
Brand: Hoffman
|
SKU:
10376611
Regular price
$328.04
Unit price
Description
Description

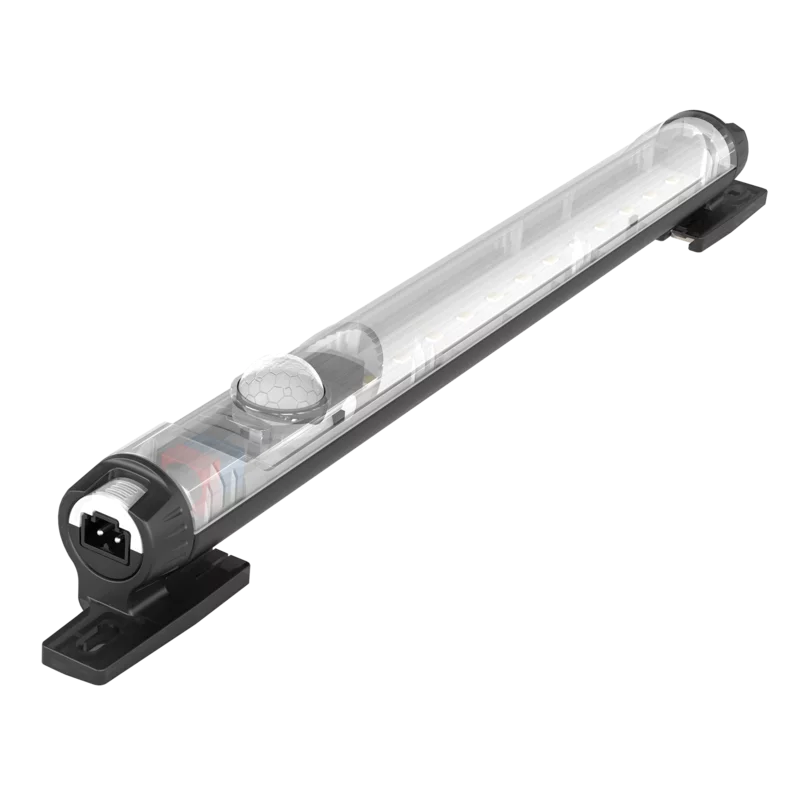

Hoffman CEL550M | Compact LED Light, CEL, 396x33x40mm, Black, Plastic, Motion
A compact LED light specially designed for nVent HOFFMAN enclosures. Available with or without motion sensor. Simple through-wiring based on a plug-and-play system. Suitable for global use with a voltage range of 24VDC-240VAC.
Hoffman - CEL550M - Features
- Benefit: enclosure light provides a compact and flexible solution, and offers fast, easy assembly and installation
- Benefit: for mounting flexibility, the CEL light can be fastened to the enclosure with screws or quickly attached to any flat steel surfaces with optional magnetic kits
- Benefit: A motion sensor is also available
- Advantage: lights can be easily mounted vertically or horizontally
- Feature: compact LED enclosure light , multi-voltage
- For lights without a motion sensor, it is highly recommended to install a door switch to reduce energy consumption
- Cables and accessories sold separately to design your own application
- BULLETIN NUMBER: ALED
- Industry Standards:
- UL 508A Component Recognized; File No. E61997
- cUL Component Recognized per CSA C22.2 No. 14; File No. E61997
- IP20
Specifications
Specifications
Hoffman - CEL550M - Product Categories
- Industrial
- Industrial Enclosure Accessories
- IEC Enclosure Accessories
Hoffman - CEL550M - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | CEL550M |
| Item Description | Compact LED Light, CEL, 396x33x40mm, Black, Plastic, Motion |
| Height | 15.59 in / 396 mm |
| Width | 1.3 in / 33 mm |
| Depth | 1.57 in / 40 mm |
| Material | Plastic |
| Finish | Smooth Matte |
| Color | Black |
| Lamp Type | LED |
| Luminosity | 550 |
| Color Temperature | 5800 K |
| Light Color | Neutral White |
| Nominal Voltage | 230 V |
| Input Voltage AC | 240 V max |
| Input Voltage DC | 24 V max |
| Hertz | 50/60 Hz |
| Connection | 3-Pole Infeed and Through Wiring |
| Operating Temperature | ?4 to 131 °F / ?20 to 55 °C |
| Max Power Consumption | 5.1 W |
| Weight | 0.55 lb |
