Brand: Hoffman
|
SKU:
651385

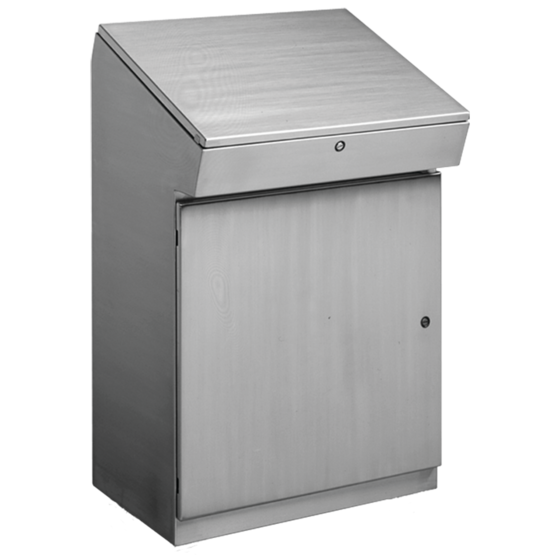

Hoffman CFC482423SS | Concept Console, Type 4X, 48.00x24.00x18.00, SS Type 304
Regular price
$18,199.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CFC482423SS | Concept Console, Type 4X, 48.00x24.00x18.00, ...
Regular price
$18,199.33
Unit price
Description
Description
Concept Console provides a convenient surface for mounting and monitoring components. Ergonomically designed so users can sit or stand while working on a sloped surface. Console features a large internal capacity for mounting components and controls.
Main Features
- Solid bottom
- Corner-formed doors
- External-formed 90-degree body flange
- 20-degree sloped-top cover for 38.00-in. (965-mm) tall console or 30-degree top cover for 48.00-in. (1219-mm) console
- Quarter-turn stainless steel latches hold top cover securely closed
- Door props hold top cover open at 90-degrees
- Integral water-shedding trough
- Collar studs for optional back panel
- Optional side panels (mounted to collar studs) expand equipment mounting space
- Tool-to-open 3-point latch on front access door; door is removable and reversible; 170-degree full-access opening
- Seamless foam-in-place gasket
- Bonding provision on door; grounding stud on body
- Provision for data pocket on lower front door
- Easy-to-remove clip-style hinge pins
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA Type 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AS050SS
Specifications
| Height | 48 in / 1219 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 18 in / 457 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3R |
| Material | Stainless Steel 304 |
| Conductive Panel | CP2442G |
| Data Pocket | Large |
| Back Panel | CP2442 |
| Back Panel Height x Width | 40.20 x 22.20 in / 1021 x 564 mm |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 1.98 mm |
| BULLETIN NUMBER | C1S |
