Brand: Hoffman
|
SKU:
651398

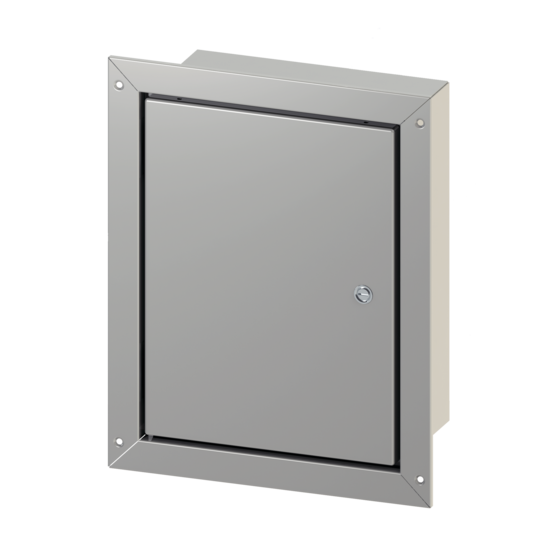

Hoffman CFM30248 | Concept Flush-Mounted Enclosures, 30.00x24.00x8.00, Gray, Steel
Regular price
$1,523.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CFM30248 | Concept Flush-Mounted Enclosures, 30.00x24.00x8....
Regular price
$1,523.62
Unit price
Description
Description
Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish.
Purchase panels separately.
Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
Main Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Flush-Mount models have a mounting frame that extends completely around the enclosure
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- Wall-mounting brackets required to maintain UL/CSA external mounting requirement.
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 42186: Type 4, 12
- VDE IP66
Related Accessories
- Catalog #: ADP1
- Catalog #: ADP2
- Catalog #: ADSTOPK
- Catalog #: AS050
- Catalog #: CLKDBM3
- Catalog #: CLKSM7
- Catalog #: CLKTM7
- Catalog #: CMFK
Specifications
| Height | 30 in / 762 mm |
|---|---|
| Finish | Powder Coated |
| Width | 24 in / 610 mm |
| Color | Gray |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Concept Panel | CP3024 |
| Conductive Concept Panel | CP3024G |
| Panel Size | 28.20 x 22.20 in / 716 x 564 mm |
| Mounting | 30.75 x 26.25 in / 781 x 667 mm |
| Latch Quantity | 2 |
| BULLETIN NUMBER | CW1 |
