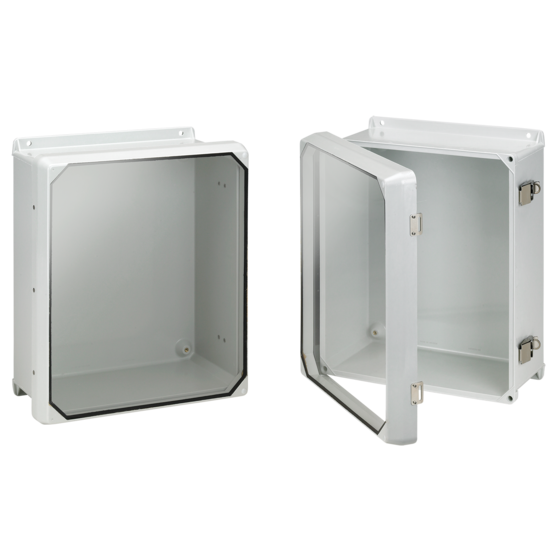

Hoffman CHJ1210HWPL2LG | Flat Clear Cover with Latches, Type 4X, 11.68x9.69x4.62, Fiberglass
Regular price
$541.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CHJ1210HWPL2LG | Flat Clear Cover with Latches, Type 4X, 11...
Regular price
$541.93
Unit price
Description
Description
Enclosures feature a flat, overlapping clear cover design that ensures a more-secure seal and provides a larger viewing area than a traditional window. Latches provide easy access and security.
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Main Features
- Compression-molded fiberglass construction
- Clear polycarbonate viewing area
- Cover fastens with padlockable Type 316 stainless steel latches
- Type 304 stainless steel piano hinges
- Integral mounting brackets
- Enclosures protect equipment and operators from indirect electrical contact
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
- cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
- Enclosure flammability per UL 508A
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Specifications
| Height | 11.68 in / 297 mm |
|---|---|
| Width | 9.69 in / 246 mm |
| Depth | 4.62 in / 117 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66 |
| Material | Fiberglass |
| Panel Size | 10.75 x 8.88 in / 273 x 226 mm |
| Window Size | 305 x 254 mm / 12.00 x 10.00 in |
| Aluminum Panel | A12P10AL |
| Steel Panel | A12P10 |
| Latch Quantity | 2 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| BULLETIN NUMBER | HJ |
