Hoffman CP486018B | CONCEPT HMI Enclosure, Blue Handles, Type 4, 48...
Description
Description

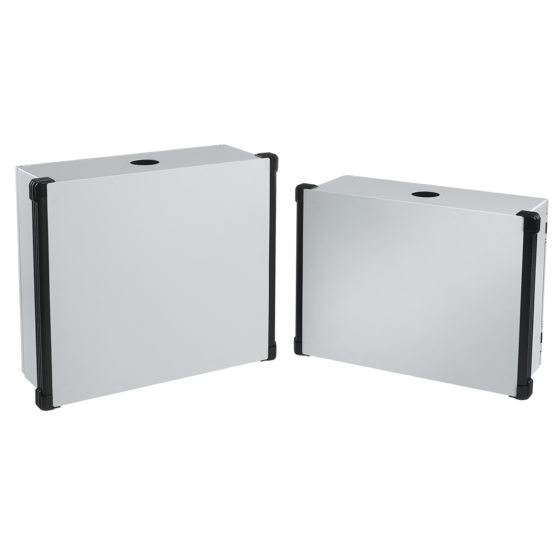

A traditional landscape-oriented HMI enclosure with handles made of light-gray steel, the Concept HMI Enclosure is unique among HMI enclosure systems when you need a range of customization options. This pendant- or pedestal-mounted system has many possible configurations and modifications, including a removable front plate that makes it easy to install HMI components, an optional door panel can be mounted in the hinged rear door and the ability to accommodate cutouts anywhere on the enclosure.
Main Features
- Pre-drilled hole in top for pendant arm mounting
- Pedestal mounting when enclosure is inverted
- Integral aluminum handle extrusions have a comfort grip that extends the length of the profile; available in black or blue
- Hinged rear corner-formed door has a single-point latch, seamless foam-in-place gasket and panel studs
- Aluminum removable front plate is .125-in aluminum
- Grounding stud on body; bonding provision on door
- Simple easy-to-remove and install hinge pins with built-in captive clip
- High-torque threadless studs and fasteners on door for mounting optional door panel
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File Number E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- NEMA Type 4, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050
- Catalog #: TE121024010
- Catalog #: CP525518
- Catalog #: CP525512
- Catalog #: CP486018
- Catalog #: CP475018
- Catalog #: CP475012
- Catalog #: CP455518
Hoffman On Demand Alternatives
- Catalog #: CP556018
- Catalog #: CP556012
Specifications
| Height | 18.9 in / 480 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 7.09 in / 180 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Front Opening | 440 mm / 17.32 in / 530 mm / 20.87 in |
| Front Plate | 480 mm / 18.9 in / 611 mm / 24.06 in |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 38.26 lb |
| BULLETIN NUMBER | C2 |
