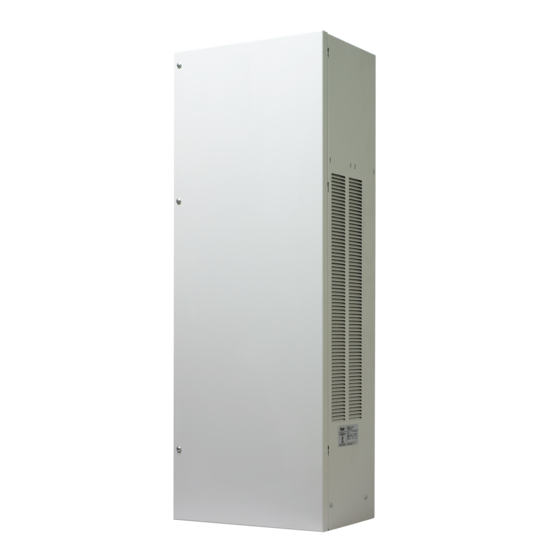

Hoffman CR430826G026 | ProAir Harsh Environment Indoor with Controller, CR43 8000 BTU 230v
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CR430826G026 | ProAir Harsh Environment Indoor with Control...
Description
Description
The ProAir Harsh Environment Air Conditioner protects components exposed in corrosive environments on the ambient side of the air conditioner. The unit has few fasteners and a hinged door for quick service and maintenance access. The smooth surface and optional hood provides protection from splashed water.
T-Series may be more appropriate. Refer to T-Series A/C section. Consult the factory for availability and catalog number.
Main Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a or R407c refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
Industry Standards
- UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453
- UR/cUR Recognized
- UR/cUR Recognized on select models, reference performance data tables.
- CE
- EAC
Specifications
| Height | 43.31 in / 1100.074 mm |
|---|---|
| Width | 15.75 in / 400.05 mm |
| Depth | 10.25 in / 260.35 mm |
| Nominal Capacity Btu/h | 8000 Btu/h |
| Nominal Capacity Watts | 2344 W |
| Nominal Voltage | 230 V |
| Number of Phases | 1 |
| Voltage AC | 200 V |
| Operating Temperature | -40 to 131 °F / -40 to 55 °C |
| Max Current | 5 A |
| Protection Rating | NEMA Type 12; NEMA Type 3R |
| Remote Access Control | No |
| BULLETIN NUMBER | MCL |
