Brand: Hoffman
|
SKU:
651549

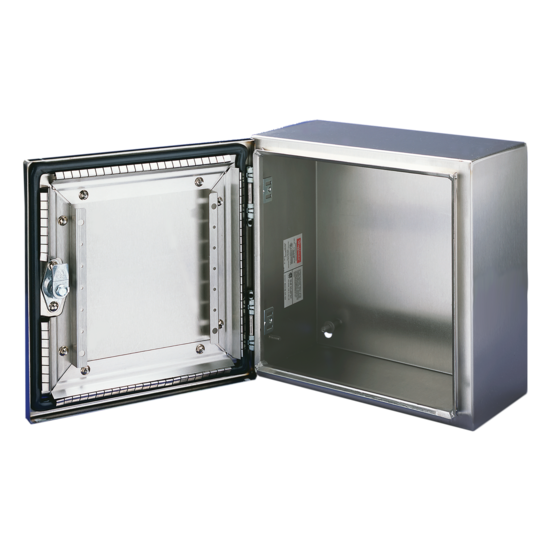

Hoffman CSD12126EMCSS | Concept Wallmount EMC 1/4-Turn Latch Type 4X, 12x12x6, SS Type 304
Regular price
$2,934.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD12126EMCSS | Concept Wallmount EMC 1/4-Turn Latch Type 4...
Regular price
$2,934.29
Unit price
Description
Description
Use Concept EMC Enclosures with their convenient quarter-turn latches in corrosive indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Purchase panels separately.
Main Features
- Seams continuously welded and ground smooth
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Easy-to-remove clip-style hinge pins
- Removable corner formed door
- Seamless foam-in-place gasket adjacent to spring finger EMC gasket
- Quarter-turn latches with flush slotted insert
- Self-grounding latch system with double seal
- Integral body grounding stud
- Furnished hardware kit includes panel mounting nuts, grounding hardware and sealing washers for wall-mounting holes
Specifications
Specifications
Related Accessories
- Catalog #: CP1212
- Catalog #: CP1212G
- Catalog #: CMC12
- Catalog #: CMFKSS
- Catalog #: CPMK12
- Catalog #: ADP1
- Catalog #: ADSTOPKSS6
- Catalog #: APWK53NFNM
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 10.20 x 10.20 in / 259 x 259 mm |
| Conductive Panel | CP1212G |
| Mounting | 10.50 x 10.50 in / 267 x 267 mm |
| Panel | CP1212 |
| Latch Quantity | 1 |
| Body Thickness | 18 ga / 1.27 mm |
| Color | Unpainted |
| BULLETIN NUMBER | CWSEM |
