Brand: Hoffman
|
SKU:
651550

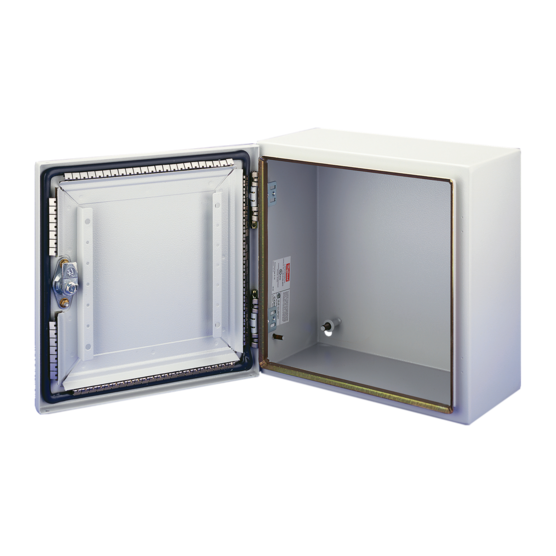

Hoffman CSD12126LGEMC | Concept EMC, Type 4, 12.00x12.00x6.00, Lt Gray, Steel
Regular price
$1,577.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD12126LGEMC | Concept EMC, Type 4, 12.00x12.00x6.00, Lt G...
Regular price
$1,577.93
Unit price
Description
Description
Use stylish Concept EMC Enclosures with their convenient quarter-turn latches in indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Purchase panels separately.
Main Features
- Seams continuously welded and ground smooth
- Minimum width body flange provides maximum door opening
- External formed body flange channels away liquids
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Door opens 210 degrees
- Corner-formed door
- Hinge mounting brackets for wire management or optional accessories
- Stainless steel spring finger EMI/RFI gasket
- Quarter-turn latches
- Grounding stud on body
- Door bars provided for wire management and bonding
- Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirement.
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 42186: Type 4, 12
- VDE IP66
Related Accessories
- Catalog #: A18SBASE
- Catalog #: A24SBASE
- Catalog #: A44CCOL
- Catalog #: A66CCOL
- Catalog #: APWK53NF
- Catalog #: AS050
- Catalog #: CP1212
- Catalog #: CP1212G
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Color | Light Gray |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Concept Panel | CP1212 |
| Conductive Panel | CP1212G |
| Panel Size | 10.20 x 10.20 in / 259 x 259 mm |
| Mounting | 10.50 x 10.50 in / 267 x 267 mm |
| Latch Quantity | 1 |
| BULLETIN NUMBER | A53 |
