Brand: Hoffman
|
SKU:
651615

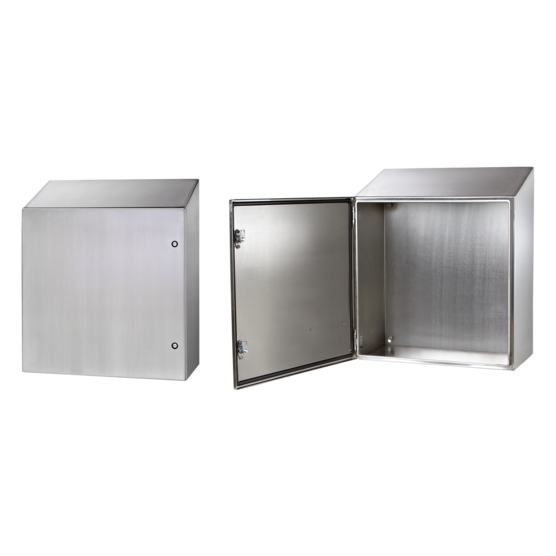

Hoffman CSD202012SSST | Concept Sloped Top Wallmount, 1/4 Turn Latch, 4X, 20x20x12, SS 304
Regular price
$3,202.80
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD202012SSST | Concept Sloped Top Wallmount, 1/4 Turn Latc...
Regular price
$3,202.80
Unit price
Description
Description
For indoor or outdoor applications that require a sloped top and corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush, stainless steel quarter-turn latches for secure closure.
Purchase panels separately.
Main Features
- 20 degree sloped top prevents pooling of liquids and accumulation of other debris
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
- Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional door stop kit
- Seams continuously welded and ground smooth
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- VDE IP66
Related Accessories
- Catalog #: AS050SS
- Catalog #: CP2020
- Catalog #: CP2020G
- Catalog #: CMC20
- Catalog #: CMFKSS
- Catalog #: CMTGFT
- Catalog #: CPMK20
- Catalog #: ADP1
Specifications
| Height | 20 in / 508 mm |
|---|---|
| Width | 20 in / 508 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel | CP2020 |
| Conductive Panel | CP2020G |
| Panel Size | 18.20 x 18.20 in / 462 x 462 mm |
| Mounting | 18.50 x 18.50 in / 470 x 470 mm |
| Latch Quantity | 1 |
| Body Thickness | 16 ga / 1.59 mm |
| Color | Unpainted |
| BULLETIN NUMBER | CWS2 |
