Brand: Hoffman
|
SKU:
651616

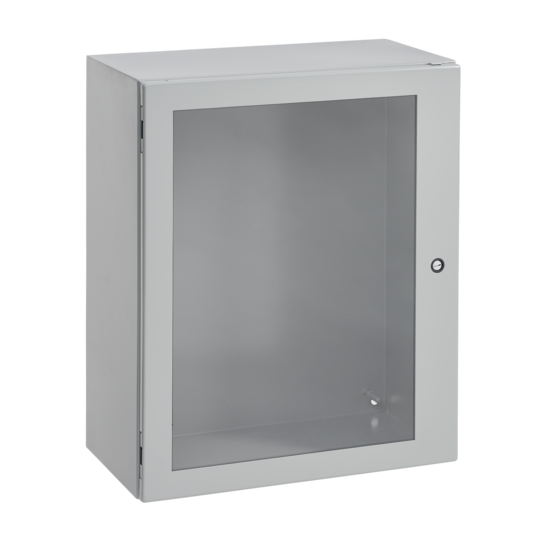

Hoffman CSD202012W | Concept Window-Door Enclosures, 20.00x20.00x12.00, Gray, Steel
Regular price
$1,254.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD202012W | Concept Window-Door Enclosures, 20.00x20.00x12...
Regular price
$1,254.45
Unit price
Description
Description
Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish.
Purchase panels separately.
Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
Main Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Grounding stud on body
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
- Clear polycarbonate window flush with door surface
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- Wall-mounting brackets required to maintain UL/CSA external mounting requirement.
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 42186: Type 4, 12
- VDE IP66
Related Accessories
- Catalog #: ADP1
- Catalog #: ADP2
- Catalog #: ADSTOPK
- Catalog #: AS050
- Catalog #: CLKDBM3
- Catalog #: CLKSM7
- Catalog #: CLKTM7
- Catalog #: CMFK
Specifications
| Height | 20 in / 508 mm |
|---|---|
| Width | 20 in / 508 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 16 ga / 1.52 mm |
| Door Thickness | 14 ga / 1.9 mm |
| Panel Size | 18.20 x 18.20 in / 462 x 462 mm |
| Window Size | 419 x 389 mm / 16.49 x 15.30 in |
| BULLETIN NUMBER | CW1 |
