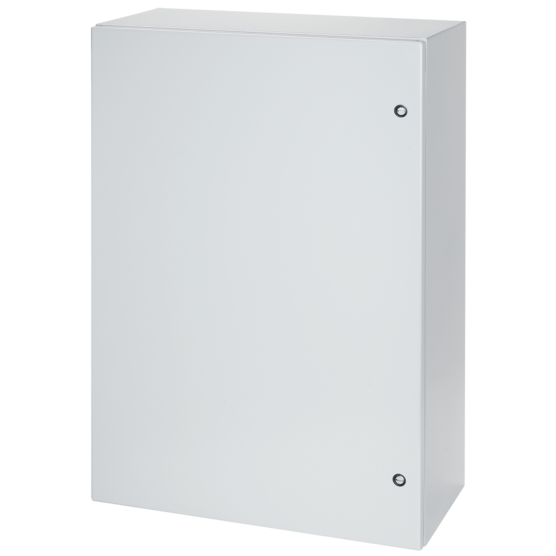

Hoffman CSD302412LG Concept Single-Door Enclosures, 30.00x24.00x12.00, Lt Gray, Steel

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip
• High-torque threadless studs and fasteners on door
• Minimum-width body flange provides maximum door opening (210 degrees)
• Door opens 210 degrees
• External formed body flange
• Panel mounting studs fit optional Concept panels and other accessories
• Mounting holes in back of body for optional external wall-mount brackets
• Removable door with hidden hinges for clean, aesthetic appearance
• Seamless foam-in-place gasket
• Quarter-turn slotted latch(es)
• Door alignment device on doors wider than 30 inch
• Four hinges on 60-inch high enclosures
• Grounding stud on body; bonding provision on door
• Provisions on door for optional high-impact thermoplastic data pocket
• Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
• Installation instructions provided
• Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch

• Height: 30 in / 762 mm
• Width: 24 in / 610 mm
• Depth: 12 in / 305 mm
• Protection Rating: NEMA Type 12; NEMA Type 4; IP66
• Material: Mild Steel
• Finish: Powder Coated
• Color: Light Gray
• Color Code: RAL 7035
• Body Thickness: 16 / 1.52 mm
• Door Thickness: 14 / 1.9 mm
• Concept Panel: CP3024
• Conductive Concept Panel: CP3024G
• Panel Size: 28.20 x 22.20 in / 716 x 564 mm
• Mounting: 28.50 x 22.50 in / 724 x 572 mm
• Latch Quantity: 2
• Latch Style: Quarter-turn
• J: 5.00 in / 127 mm
