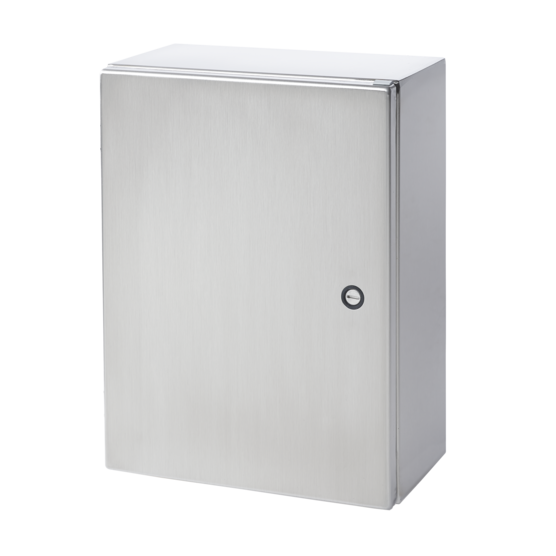

Hoffman CSD30248SS | Concept Wallmount 1/4-Turn Latch Type 4X, 30x2...
Description
Description
For indoor or outdoor applications that require corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.
Main Features
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
- Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- VDE IP66
Related Accessories
- Catalog #: CP3024
- Catalog #: CP3024G
- Catalog #: CMC24
- Catalog #: CMFKSS
- Catalog #: CMTGFT
- Catalog #: CPMK24
- Catalog #: ADP2
- Catalog #: ADSTOPK
Hoffman On Demand Alternatives
- Catalog #: CSD363012SS
- Catalog #: CSD363010SS
- Catalog #: CSD362412SS
- Catalog #: CSD30308SS
- Catalog #: CSD303012SS
- Catalog #: CSD303010SS
- Catalog #: CSD30248SS
- Catalog #: CSD302412SS
Specifications
| Height | 30 in / 762 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Panel | CP3024 |
| Conductive Panel | CP3024G |
| Panel Size | 28.20 x 22.20 in / 716 x 564 mm |
| Mounting | 28.50 x 22.50 in / 724 x 572 mm |
| Latch Quantity | 2 |
| Style | Quarter-turn |
| Body Thickness | 16 ga / 1.59 mm |
| BULLETIN NUMBER | CWS |
