Brand: Hoffman
|
SKU:
651744

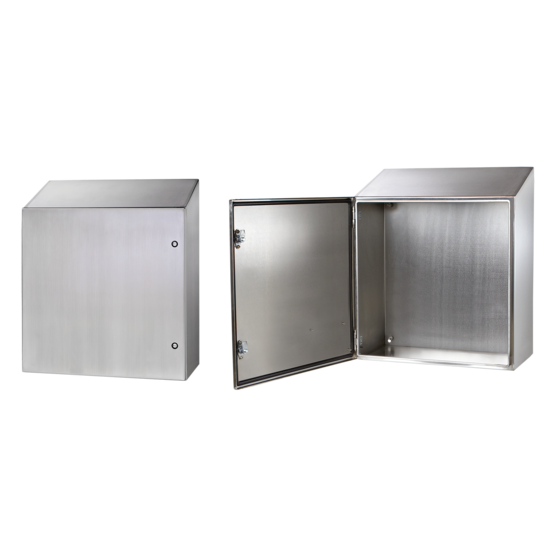

Hoffman CSD363012SSST | Concept Sloped Top Wallmount 1/4-Turn Latch Type 4X, 36x30x12, SS Type 304
Regular price
$5,524.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD363012SSST | Concept Sloped Top Wallmount 1/4-Turn Latch...
Regular price
$5,524.02
Unit price
Description
Description
For indoor or outdoor applications that require a sloped top and corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush, stainless steel quarter-turn latches for secure closure.
Purchase panels separately.
Main Features
- 20 degree sloped top prevents pooling of liquids and accumulation of other debris
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
- Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional door stop kit
- Seams continuously welded and ground smooth
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- VDE IP66
Related Accessories
- Catalog #: AS050SS
- Catalog #: CP3630
- Catalog #: CP3630G
- Catalog #: CMFKSS
- Catalog #: CMTGFT
- Catalog #: CPMK30
- Catalog #: ADP2
- Catalog #: ADSTOPK
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 30 in / 762 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel | CP3630 |
| Conductive Panel | CP3630G |
| Panel Size | 34.20 x 28.20 in / 869 x 716 mm |
| Mounting | 34.50 x 28.50 in / 876 x 724 mm |
| Latch Quantity | 4 |
| Body Thickness | 14 ga / 1.98 mm |
| Color | Unpainted |
| BULLETIN NUMBER | CWS2 |
