Brand: Hoffman
|
SKU:
651745

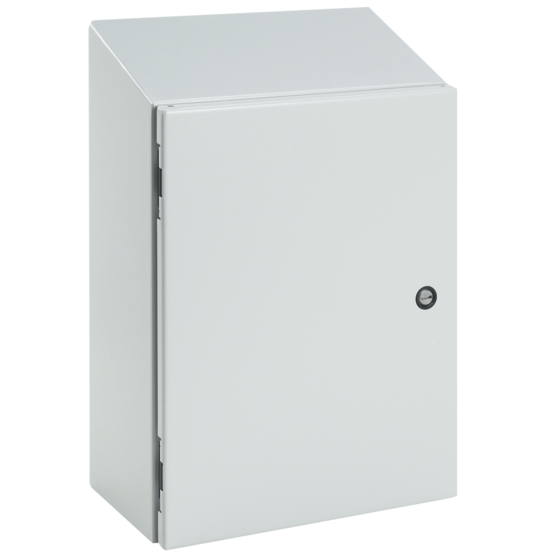

Hoffman CSD363012ST | Concept Sloped-Top, Type 4, 36.00x30.00x12.00, Lt Gray, Steel
Regular price
$1,642.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD363012ST | Concept Sloped-Top, Type 4, 36.00x30.00x12.00...
Regular price
$1,642.15
Unit price
Description
Description
Concept Sloped Top Enclosures support Lean factory principles and are ideal when the miniaturization of controls calls for smaller control cabinets or for applications requiring the mounting of controls at an ergonomic height when attached to equipment.
Purchase panels separately.
Main Features
- Bonding provision on door and body
- Panel-mounting studs fit optional Concept panels and other accessories
- Corner-formed door
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
- External formed body flange channels away liquids
- Door opens 210 degrees
- Seamless foam-in-place gasket
- Quarter-turn latches
- Mounting holes in back of body for optional external mounting brackets
- Larger sizes support 19-in. rack mounting
- Door alignment device on doors wider than 30-in.
- Minimum-width body flange provides maximum door opening
- 20-degree sloped top
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirement.
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 42186: Type 4, 12
- VDE IP66
Related Accessories
- Catalog #: CP3630
- Catalog #: CP3630G
- Catalog #: CMFK
- Catalog #: CMTGFT
- Catalog #: CPMK30
- Catalog #: ADP2
- Catalog #: ADSTOPK
- Catalog #: CLKDBM3
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Finish | Powder Coated |
| Width | 30 in / 762 mm |
| Color | Light Gray |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Panel | CP3630 |
| Conductive Panel | CP3630G |
| Panel Size | 34.2 in / 869 mm / 28.2 in / 716 mm |
| Mounting | 38.79 x 28.50 in / 985 x 724 mm |
| Latch Quantity | 2 |
| BULLETIN NUMBER | CW2 |
