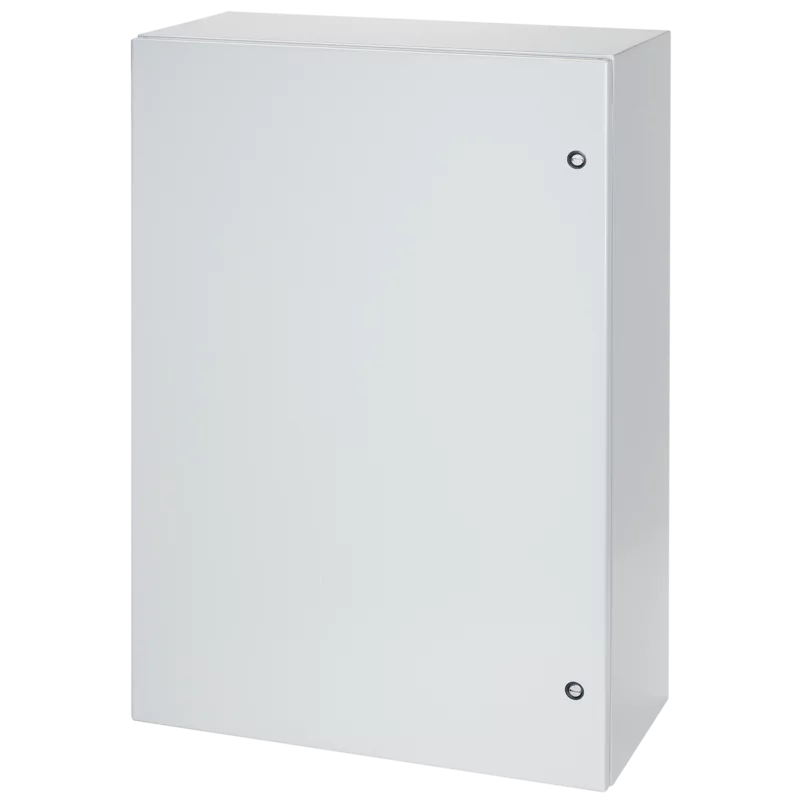

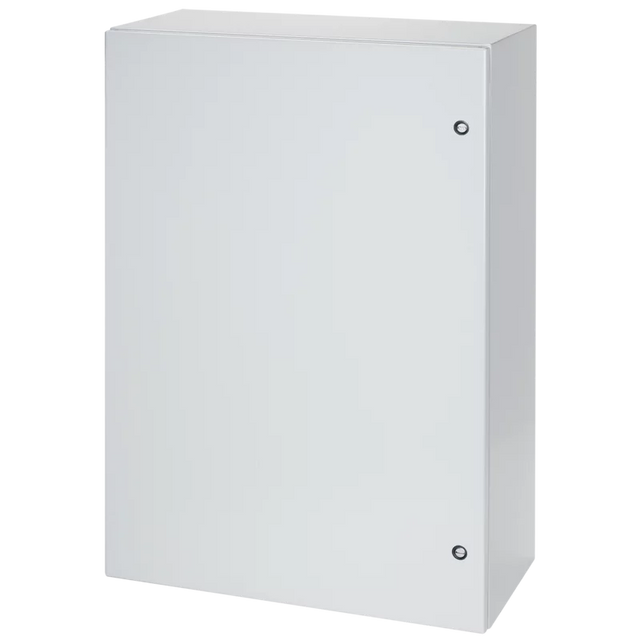

Hoffman CSD60368 | Concept Single-Door Enclosure, 60.00x36.00x8.00, Gray, Steel

Hoffman - CSD60368 - Features

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip
• High-torque threadless studs and fasteners on door
• Minimum-width body flange provides maximum door opening (210 degrees)
• Door opens 210 degrees
• External formed body flange
• Panel mounting studs fit optional Concept panels and other accessories
• Mounting holes in back of body for optional external wall-mount brackets
• Removable door with hidden hinges for clean, aesthetic appearance
• Seamless foam-in-place gasket
• Quarter-turn slotted latch(es)
• Door alignment device on doors wider than 30 inch
• Four hinges on 60-inch high enclosures
• Grounding stud on body; bonding provision on door
• Provisions on door for optional high-impact thermoplastic data pocket
• Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
• Installation instructions provided
• Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
• Purchase panels separately.
• Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
• Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
• BULLETIN NUMBER: CW1
• Industry Standards:
• UL 508A Listed; Type 4, 12; File No. E61997
• cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
• Wall-mounting brackets required to maintain UL/CSA external mounting requirement.
• NEMA/EEMAC Type 4, 12, 13
• IP66
• IEC 60529, IP66
