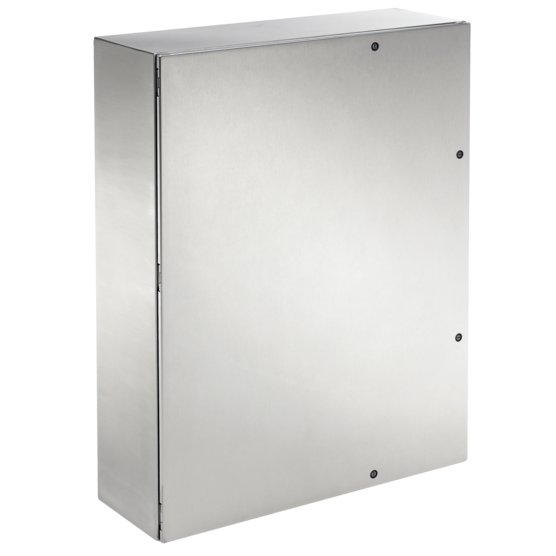

Hoffman CSD723612SSR | Concept Wallmount Multi 1/4-Turn Latch Type 4X, 72x36x12, SS Type 304
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD723612SSR | Concept Wallmount Multi 1/4-Turn Latch Type ...
Description
Description
For indoor or outdoor applications that require corrosion protection from chemicals and water, Concept enclosures house larger controls and feature streamlined styling with an attractive stroked finish, flush quarter-turn latches and an integral door ramp that ensures the door gasket sealing surface aligns with the enclosure body for secure closure.
Purchase panels separately.
Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.
Main Features
- Seams continuously welded and ground smooth
- Minimum-width body flange provides maximum body opening
- Corner formed doors
- External formed 90-degree body flange
- Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door
- Integral door alignment device to properly align door and gasket to body offset
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional doorstop kit
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File Number E61997
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: CP7236
- Catalog #: CMFKSS
- Catalog #: CMTGFT
- Catalog #: ADP2
- Catalog #: ADSTOPK
- Catalog #: ADSTOPKSS6
- Catalog #: APWK138NFSS
- Catalog #: APWK1711NFSS
Hoffman On Demand Alternatives
- Catalog #: CSD603612SSR
- Catalog #: CSD483612SSR
- Catalog #: CSD423612SSR
- Catalog #: CSD363612SSR
- Catalog #: CSD363612SS6R
- Catalog #: CSD363610SSR
Specifications
| Height | 72 in / 1829 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4X; NEMA Type 13; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Panel | CP7236 |
| Panel Size | 70.20 x 34.20 in / 1783 x 462 mm |
| Mounting | 70.50 x 34.50 in / 1791 x 876 mm |
| Latch Quantity | 4 |
| Style | Quarter-turn |
| Color | Unpainted |
| Finish | Brushed #4 |
| BULLETIN NUMBER | CWS |
