Hoffman CSPB2016 | Concept Swing-Out Panels, fits 20.00x16.00, Whit...
Description
Description

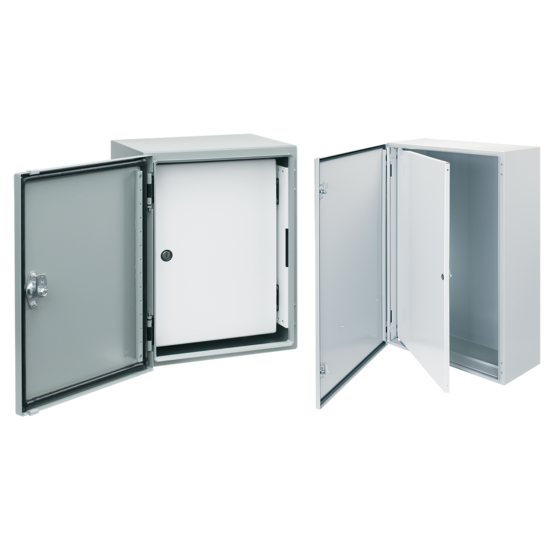

Panels swing clear from the front of the enclosure to provide access to mounted internal equipment. For CSPB panels, maximum swing is 94 degrees. For CSP panels, maximum panel swing is 106 degrees. Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors. Kits include panel, brackets and hardware to mount to the front flange. Swing-out panels also can be mounted on front-to-back adjustable rails. CSPB panels require adapter CSPBADB and front-to-back adjustable rails for front-to-back adjustment.
Swing-out panels also can be mounted on front-to-back adjustable rails. CSPB panels require adapter CSPBADB and front-to-back adjustable rails for front-to-back adjustment.
Main Features
- CSPB panels, maximum swing is 94 degrees
- CSP panels, maximum panel swing is 106 degrees
- Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors
- Kits include panel, brackets and hardware to mount to the front flange
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Fits Enclosure Size | 20.00 x 16.00 in / 508 x 406 mm |
| Panel Size | 17.72 x 13.75 in / 450 x 349 mm |
| Color | White |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 9.3 lb |
| BULLETIN NUMBER | CWY |
