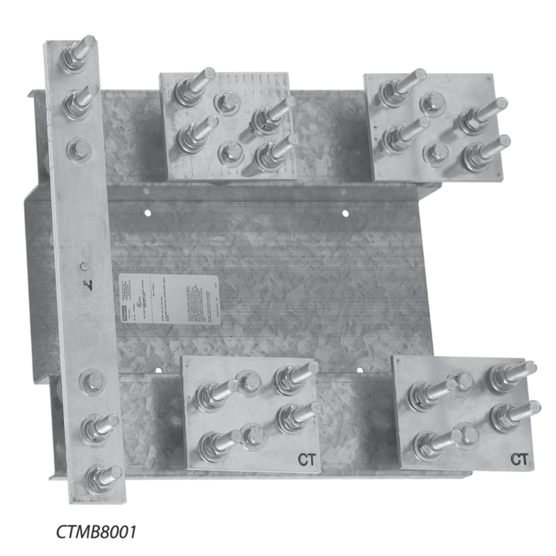

Hoffman CTMB8001 | CT Mounting Base, 1-Phase, 400-800 Amp with Studs, Steel
Regular price
$583.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CTMB8001 | CT Mounting Base, 1-Phase, 400-800 Amp with Stud...
Regular price
$583.03
Unit price
Description
Description
CT Mounting Base accommodates the preference difference between line and load connections inside a CT cabinet. The bases are available in three variations of conductor connection styles to match your application: 1/2-in. studs on 1-3/4-in. centers, a model with mechanical lugs and a model with lugs on one side and studs on the other. Pre-punched mounting base holes align with the studs in a CT cabinet
Main Features
- Spacing for bar-type current transformer that conforms to ANSI 12.11
- Conductor provisions: either mechanical lugs or 1/2-in. bolt on 1-3/4-in. centers with nut, spring and flat washer
- Neutral bar with 10-32 tap screw
- 12-gauge galvanized formed base has electrically isolated mount/termination platform
Specifications
Specifications
Industry Standards
- UL 414 Listed; File E240312
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
Specifications
| Material | Mild Steel |
|---|---|
| Connection | Studs |
| AIC (Ampere Interrupting Capacity) Rating | 50000 A |
| Ampacity | 400-800 A |
| Max Voltage AC | 600 V |
| Service Type | 1Ø3W |
| CT Provision Quantity | 2 |
| Color | Unpainted |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Weight | 25 lb |
| BULLETIN NUMBER | A90CM |
