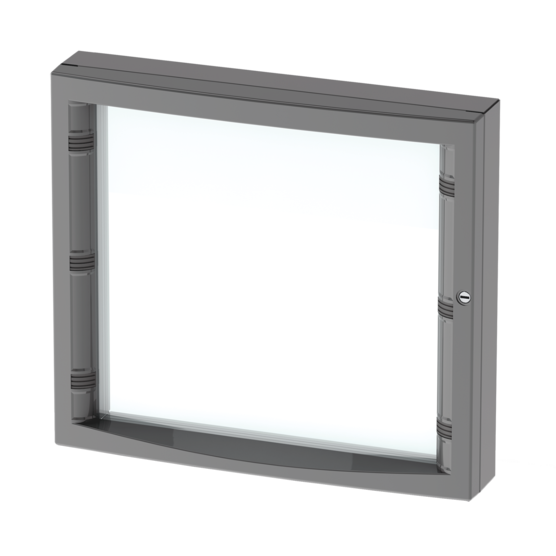

Hoffman CWHD3136 | Concept Deep Hinged Window Kit Type 12, fits 310x360mm, Gray, Steel
Regular price
$1,144.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CWHD3136 | Concept Deep Hinged Window Kit Type 12, fits 310...
Regular price
$1,144.24
Unit price
Description
Description
Concept deep hinged window kit can be used as an accessory window kit on larger standard nVent HOFFMAN enclosure doors. It provides two-inch space between enclosure front opening and window surface, accommodating switches, lights, meters and other components.
Main Features
- Hinged on the left side and has a single-point slotted latch
- Optional locking or non-locking wing knob latch is available
- Aesthetic die-cast aluminum frame
- 0.188-in. (5-mm) thick, clear polycarbonate window
Specifications
Specifications
Industry Standards
- UL 508A, 508, File Number E61997: Type 12
- NEMA Type 12
- CSA File Number LR42186: Type 12
- IEC 60529, IP66
Specifications
| Material | Mild Steel |
|---|---|
| Window Size | 253 x 276 mm / 9.96 x 10.86 in |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 8.9 lb |
| BULLETIN NUMBER | C2 |
