Brand: Hoffman | SKU: 651861

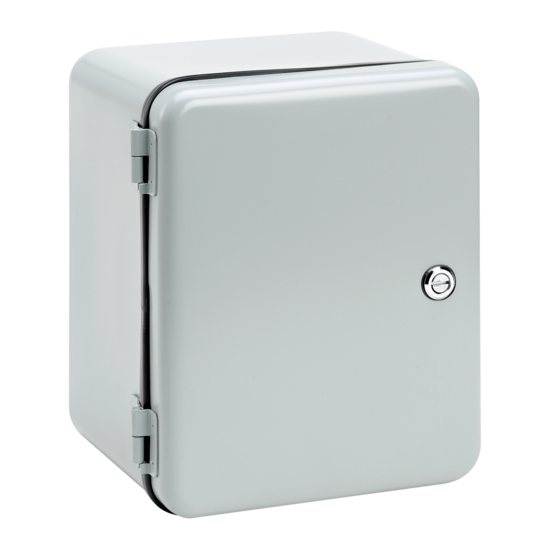

Hoffman D12108IS | Removable Hinge, Quarter-Turn Latch, Contoured, Type 12, 12x10x8, Gray, Steel

$428.49

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Use in applications where panel or an extra-deep cover for mounting of controls is desired. Protects equipment from indoor contaminants.

Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.

Main Features

Drawn enclosure
No welded seams or sharp corners
Removable door with unique lift-off hinges
Oil-tight quarter-turn slotted latches
Oil-resistant gasket
Weldnuts provided for mounting optional panels
Bonding provision on door

Specifications

Industry Standards

UL 508A Listed; Type 12; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
NEMA/EEMAC Type 12
IEC 60529, IP55

Related Accessories

Catalog #: A12P10
Catalog #: A12P10AL
Catalog #: A12P10G
Catalog #: A12P10SS
Catalog #: AJCDFK
Catalog #: A10JS
Catalog #: A12JTMA
Catalog #: A10JBNS

Specifications

Height	12 in / 305 mm
Width	10 in / 254 mm
Depth	8 in / 203 mm
Protection Rating	NEMA Type 12; IP65
Material	Mild Steel
Panel Size	10.75 x 8.88 in / 273 x 226 mm
Conductive Panel	A12P10G
Overall Dimensions	12.09 x 10.45 in / 307 x 265 mm
Panel	A12P10
Color	Gray
Color Code	ANSI 61
Finish	Powder Coated
BULLETIN NUMBER	A51
