Hoffman D16148WFW | PolyPro WiFi, Type 4X, 16.12x14.01x8.35, Polyes...
Description
Description

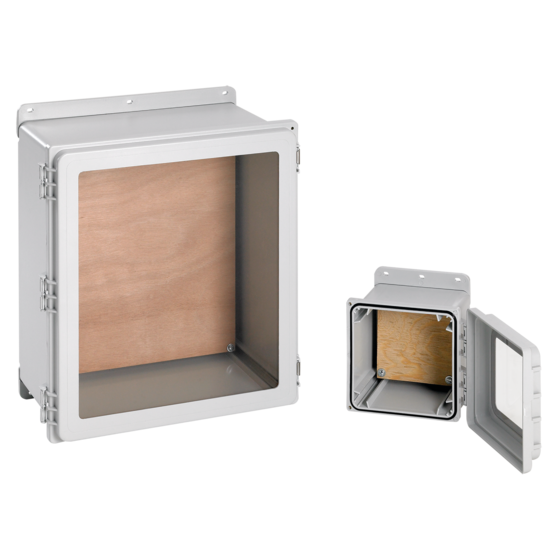

PolyPro WiFi enclosures provide protection for wireless equipment in both indoor and outdoor locations. The polyester construction and wood panel allow WiFi and WLAN signals to pass through the enclosure unimpeded. They perform exceptionally well in applications where harsh chemicals, weather extremes, a corrosive environment or flames demand toughness from a lightweight enclosure. Providing excellent ultraviolet protection and a tight environmental seal, these versatile, feature-rich enclosures are also recyclable.
Main Features
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screws and hardware, and 3/4-inch plywood panel
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- Window flammability evaluated per UL 508A
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. 42186; Type 4, 4X, 12, 13 (solid covers only)
- IEC 60529, IP66
Specifications
| Height | 16.12 in / 409 mm |
|---|---|
| Width | 14.01 in / 356 mm |
| Depth | 8.35 in / 212 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polyester |
| Panel Size | 14.75 x 12.88 in / 375 x 327 mm |
| Door Type | Window |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| Thickness | 0.12 in / 3 mm |
| Weight | 13 lb |
| BULLETIN NUMBER | DWS12 |
