Brand: Hoffman
|
SKU:
366700

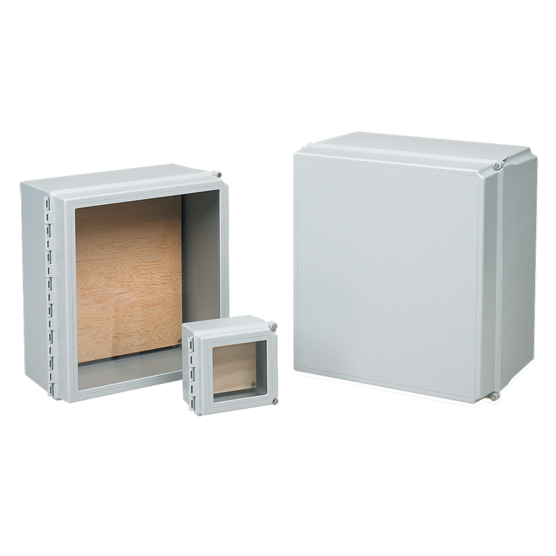

Hoffman D181610CHSCFGP | Hinge-Cover WiFi, Type 4X, 18.00x16.00x10.00, Fiberglass
Regular price
$597.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman D181610CHSCFGP | Hinge-Cover WiFi, Type 4X, 18.00x16.00x10....
Regular price
$597.59
Unit price
Description
Description
The fiberglass WiFi Cabinet is a secure, hinged enclosure that does not impede WiFi or WLAN signals. It is ideal for housing wireless equipment in locations such as tunnels, floor vaults, marinas, outside walls or rooftops.
Main Features
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures watertight and dusttight seal
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw cover enclosures are secured with two captivated Type 316 stainless steel slotted cross-point cover screws
- Available quick-release latches are corrosion-resistant polyester located in corners to provide unobstructed access to enclosure
- Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
- Scratch-resistant GE Lexan Margard windows are permanently bonded in place
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Includes a 3/4-inch plywood panel for mounting equipment
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability rating per UL 508
- NEMA/EEMAC Type 4, 4X, 12, and 13
- Window flammability rating per UL 508
- CSA File No. LR42186:Type 4, 4X, 12, and 13
- IEC 60529, IP66
Specifications
| Height | 18 in / 457 mm |
|---|---|
| Width | 16 in / 406 mm |
| Depth | 10 in / 254 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Fiberglass |
| Panel | A18P16WD / 16.75 x 14.88 in / 425 x 378 mm |
| Mounting | 18.94 x 14.00 in / 481 x 356 mm |
| Overall Dimensions | 18.58 x 16.58 in / 472 x 421 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| Thickness | 0.14 in / 3.5 mm |
| BULLETIN NUMBER | DWS12 |
