Brand: Hoffman
|
SKU:
651862

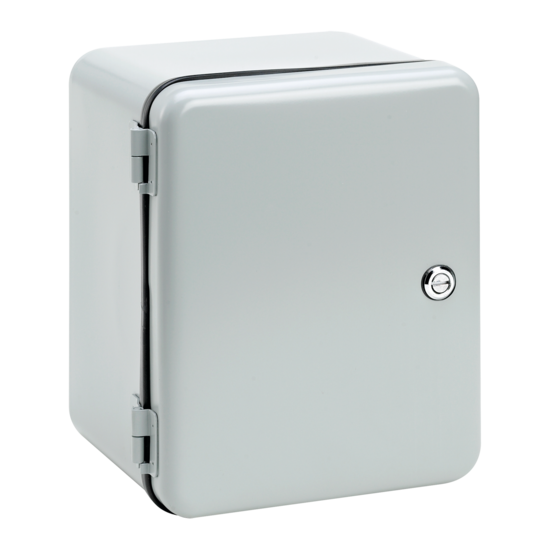

Hoffman D664IS | Removable Hinge, Quarter-Turn Latch, Contoured, Type 12, 6x6x4, Gray, Steel
Regular price
$217.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman D664IS | Removable Hinge, Quarter-Turn Latch, Contoured, Ty...
Regular price
$217.42
Unit price
Description
Description
Use in applications where panel or an extra-deep cover for mounting of controls is desired. Protects equipment from indoor contaminants.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Drawn enclosure
- No welded seams or sharp corners
- Removable door with unique lift-off hinges
- Oil-tight quarter-turn slotted latches
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels
- Bonding provision on door
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: A6P6
- Catalog #: A6P6AL
- Catalog #: A6P6G
- Catalog #: A6P6SS
- Catalog #: A6JTMA
- Catalog #: A6P6C
- Catalog #: DMFK1
- Catalog #: AS050
Specifications
| Height | 6 in / 152 mm |
|---|---|
| Width | 6 in / 152 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Panel Size | 4.88 x 4.88 in / 124 x 124 mm |
| Conductive Panel | A6P6G |
| Overall Dimensions | 6.09 x 6.45 in / 155 x 164 mm |
| Panel | A6P6 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| BULLETIN NUMBER | A51 |
