Brand: Hoffman
|
SKU:
10163477

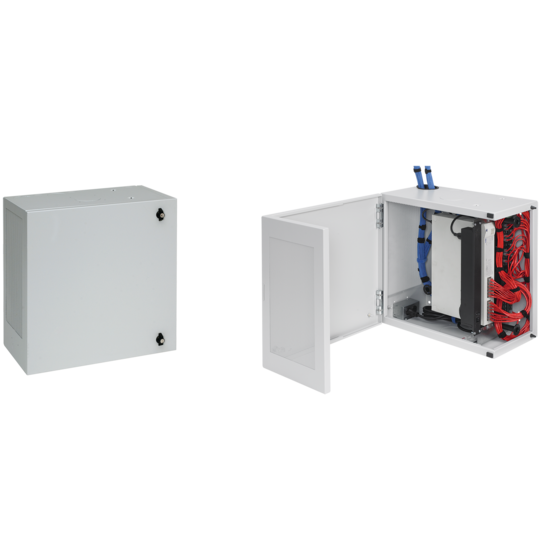

Hoffman DBL362412G | L-Box, Type 1, 36.00x24.00x12.00, Lt Gray, Steel
Regular price
$1,589.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman DBL362412G | L-Box, Type 1, 36.00x24.00x12.00, Lt Gray, Steel
Regular price
$1,589.05
Unit price
Description
Description
The low-profile, vertically-oriented L-Box wall-mount cabinet is extremely versatile and can be used in public settings to mount, store and protect network equipment, patch panels and connections. The hinged, L-shaped door provides full access on two sides to installed equipment while fixed rack angles accommodate varying equipment sizes.
Main Features
- Spring-loaded, self-retained hinge pins allow door removal
- 120-degree door opening for maximum eqiupment access
- Quarter-turn latches with key lock
- One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
- Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
- 36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
- Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
- Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
- Multiple cable tie-down points on back of cabinet
- Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting
Specifications
Specifications
Industry Standards
- UL 2416 Listed; File No. E230874
- UL 508A Listed; Type 1; File Number E61997
- cUL Listed per CSA C22.2 No. 182.4; File No. E230874
- Ventilation complies with UL 60950
- Designed in accordance with BICSI TDMM Tenth edition
- Chapter 7, Telecommunication Enclosures (TE)
- EIA 310-D
- IEC 60529, IP30
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 12.34 in / 313 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Rack Units | 6 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 78 lb |
| BULLETIN NUMBER | DWS1 |
