Brand: Hoffman | SKU: 10163476

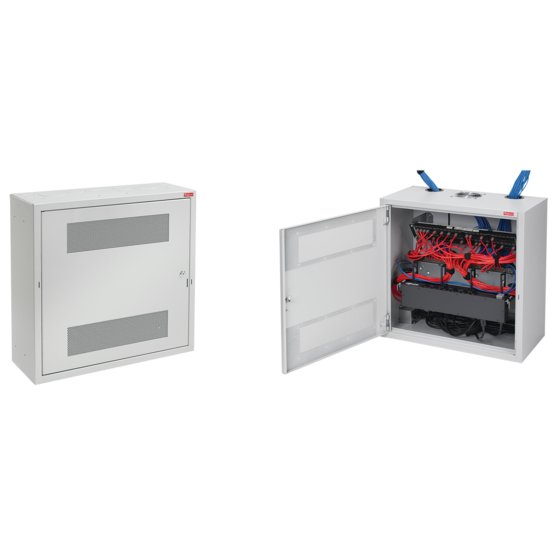

Hoffman DBS242412G | D-Box, Type 1, 24.00x24.00x12.00, Lt Gray, Steel

$1,249.21

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Ideal for retail applications where it is necessary to house 19-inch network equipment in a public location, the horizontally-oriented D-Box is a low-profile cabinet with a hinged door for convenient front access and a combination of fixed and rotating rack angles to accommodate varying equipment sizes

Main Features

Spring-loaded, self-retained hinge pins allow door removal
Reversible door fits flush to body with no exposed corners
Knockouts for 4-inch fan on top and bottom of enclosure
Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of enclosure; two 3-inch cable entry knockouts on back
120-degree door opening for maximum equipment access
Multiple cable tie-down points on back of enclosure
Quarter-turn latch with key lock
Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy enclosure mounting
Bosses provided for mounting accessories such as cable spools
Patch panel 4U mounting angles rotate down for access
Flange around door opening protects interior
Bonding provision on door
Ground stud on body

Specifications

Industry Standards

UL 2416 Listed; File No. E230874
UL 508A Listed; Type 1; File Number E61997
cUL Listed per CSA C22.2 No. 182.4; File No. E230874
Ventilation complies with UL 60950
Telcordia NEBS Requirements: Physical Protection, GR-63-CORE, Zone 4. Tested with 100 lb. (45.4 kg) of equipment installed.
Designed in accordance with BICSI TDMM Tenth edition, Chapter 7, Telecommunication Enclosures (TE)
EIA 310-D
IEC 60529, IP40

Specifications

Height	24 in / 610 mm
Width	24 in / 610 mm
Depth	12.34 in / 313 mm
Protection Rating	NEMA Type 1; IP30
Material	Mild Steel
Rack Units	6
Body Thickness	16 ga / 1.52 mm
Color	Light Gray
Color Code	RAL 7035
Door Thickness	14 ga / 1.9 mm
Finish	Powder Coated
Weight	55 lb
BULLETIN NUMBER	DWS1
