Brand: Hoffman
|
SKU:
10163482

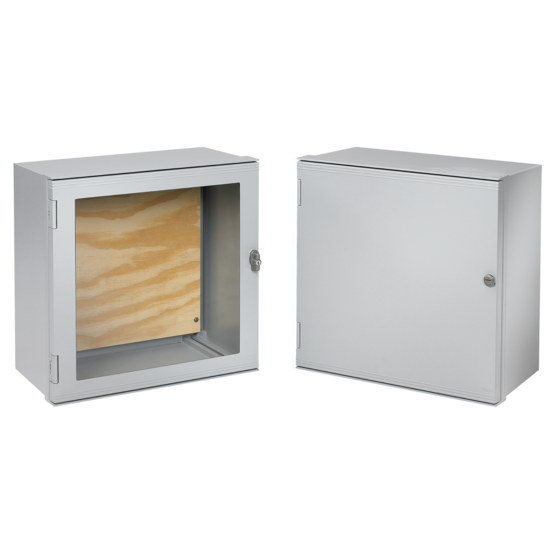

Hoffman DU606030P | Ultrx WiFi, Type 4X, 608x595x321mm, Fiberglass
Regular price
$2,038.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman DU606030P | Ultrx WiFi, Type 4X, 608x595x321mm, Fiberglass
Regular price
$2,038.92
Unit price
Description
Description
Ideal for locations such as tunnels, floor vaults, marinas, outside walls or rooftops, the lightweight Ultrx fiberglass WiFi cabinet does not impede WiFi or WLAN signals and has optional rack angles that can be added to support 19-inch rack-mount equipment.
Wood panel included with enclosure, optional steel panels must be ordered separately
Window size applies to window door cabinets only
Main Features
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures watertight and dusttight seal
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded-in drip shields are standard with each enclosure
- Door opens 180 degrees
- Replaceable breakaway hinges
- Keylocking handle standard
- Molded-in DIN bosses
- Molded bosses on door provide additional mounting provisions
- Integral mounting rails provide infinite panel adjustment front to back
- Optional data pocket is high-impact thermoplastic
- Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
- Impact-resistant polycarbonate window is permanently bonded in place
- Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
- Includes a 3/4-inch plywood panel for mounting equipment
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability rating per UL 508
- Window flammability rating per UL 508
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. LR42186: Type 4,4X, 12, 13
- IEC 60529, IP66
- Cabinets with solid doors are plenum rated.
Specifications
| Height | 23.94 in / 608 mm |
|---|---|
| Width | 23.43 in / 595 mm |
| Depth | 12.64 in / 321 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Fiberglass |
| Panel Size | 21.00 x 21.00 in / 533 x 533 mm |
| Window Size | 498 x 486 mm / 19.62 x 19.12 in |
| Mounting | 21.86 x 22.36 in / 555 x 568 mm |
| Panel | A24P24WD |
| Door Type | Solid |
| Internal Dimensions | 608 x 595 x 321 mm / 23.94 x 23.44 x 12.64 in |
| Color | Light Gray |
| BULLETIN NUMBER | DWS12 |
