Hoffman E19HPM8U | 19-in. Hinged Wall-Mount Panel, 19in, 8U, Black,...
Regular price
$197.08
Unit price
Brand: Hoffman
|
SKU:
271828
Regular price
$197.08
Unit price
Description
Description

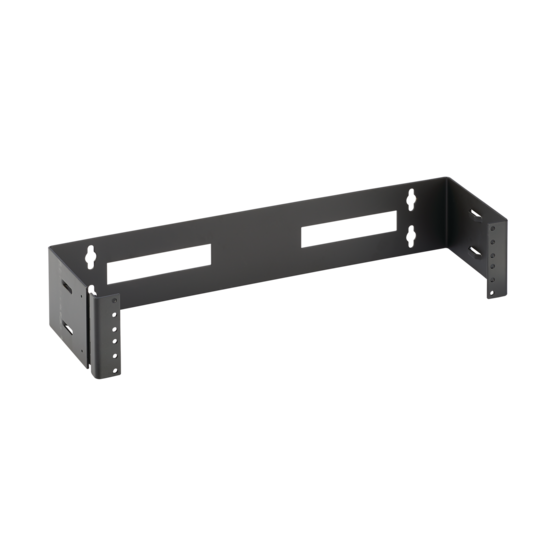

The 19-inch Hinged Panel provides a solution for smaller network equipment, punch-downs and patch panels in areas where floor space is at a premium. Easy access facilitates component installation and future expansion without disturbing existing equipment or cabling. Can be mounted with hinges on left or right side.
Main Features
- Open design offers unrestricted airflow
- Large cable exit holes on back surface
- Keyhole mounting slots on 16-in. centers accommodate up to 3/8- inch diameter mounting fasteners (not supplied)
- Heavy duty hinges are welded to frame
- Hinge provided for every two rack unit spacing
- One rack unit model has half-size hinge
- Provides access to rear of equipment
Specifications
Specifications
Industry Standards
- UL 2416 Listed; File No. E230874
- cUL Listed per CSA C22.2 No. 182.4; File No. E230874
- EIA 310-D
Specifications
| Material | Mild Steel |
|---|---|
| Rack Units | 8 |
| Load Rating | 200 lb / 90.7 kg |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 12.5 lb |
| BULLETIN NUMBER | DOFRW |
