Brand: Hoffman
|
SKU:
651973

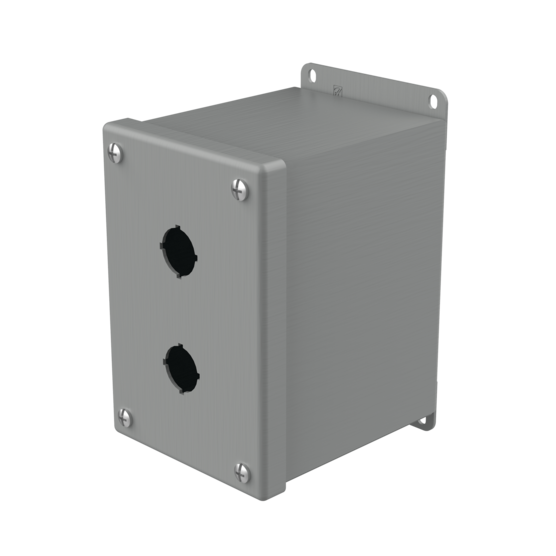

Hoffman E2PBXM | Extra-Deep Pushbutton Enclosures, Type 12, 2PB x 22.5mm, Gray, Steel
Regular price
$225.05
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman E2PBXM | Extra-Deep Pushbutton Enclosures, Type 12, 2PB x 2...
Regular price
$225.05
Unit price
Brand: Hoffman
|
SKU:
651973
Regular price
$225.05
Unit price
Description
Description
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks.
Main Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA File Number 42186: Type 12
- IEC 60529, IP65
Specifications
| Height | 6 in / 152 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 4.75 in / 121 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; IP65 |
| Material | Mild Steel |
| Hole Size | 22.5 mm mm |
| Hole Quantity | 2 |
| Mounting | 6.50 x 3.12 in / 165 x 79 mm |
| Overall Dimensions | 7.00 x 4.22 in / 178 x 107 mm |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| BULLETIN NUMBER | PB1 |
