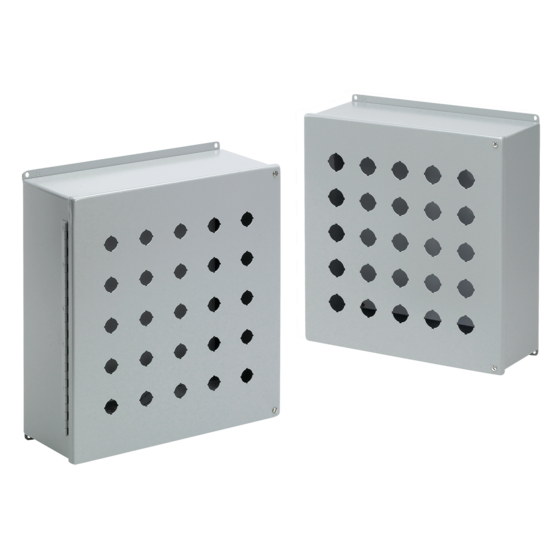

Hoffman E36PBY25 | Extra-Large Pushbutton Enclosures, Type 12, 36PB x 30.5mm, Gray, Steel
Regular price
$1,002.87
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman E36PBY25 | Extra-Large Pushbutton Enclosures, Type 12, 36PB...
Regular price
$1,002.87
Unit price
Brand: Hoffman
|
SKU:
651979
Regular price
$1,002.87
Unit price
Description
Description
Extra-Large Pushbutton Enclosures with Panels are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with 2.50-in. (64-mm) center-to-center of pushbutton holes.
Main Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Continuous hinge
- Factory stamped 4-way pushbutton holes
- Oil-resistant gasket
- Removable 14 gauge panel included, supported by weldnuts
- Bonding provision on cover
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA File Number 42186: Type 12
- IEC 60529, IP65
Specifications
| Height | 18.5 in / 470 mm |
|---|---|
| Width | 17.5 in / 445 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; IP65 |
| Material | Mild Steel |
| Hole Size | 30.5 mm mm |
| Hole Quantity | 36 |
| Panel Size | 16.50 x 15.50 in / 419 x 394 mm |
| Mounting | 19.00 x 16.62 in / 483 x 422 mm |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| BULLETIN NUMBER | PB1 |
