Description
Description

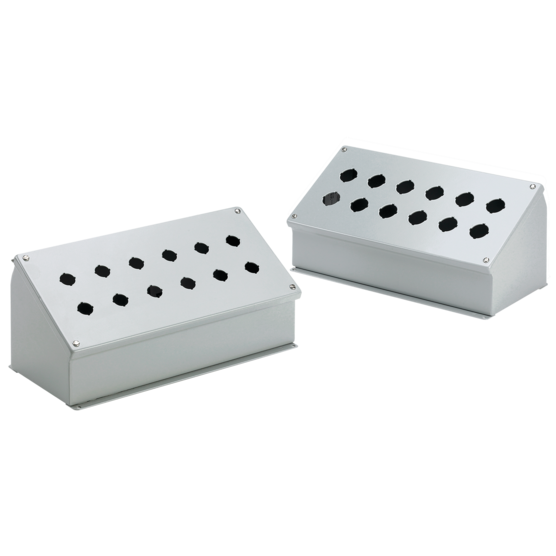

These Sloped Front Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches where slanted control surfaces are desired.
Main Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Grounding stud on body
- Bonding provision on cover
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA File Number 42186: Type 12
- IEC 60529, IP65
Specifications
| Height | 3.5 in / 89 mm |
|---|---|
| Width | 7.75 in / 197 mm |
| Depth | 4.84000015 in / 123 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; IP65 |
| Material | Mild Steel |
| Hole Size | 22.5 mm mm |
| Hole Quantity | 3 |
| Mounting | 4.03 x 6.88 in / 102 x 175 mm |
| Overall Dimensions | 4.53 x 7.97 in / 115 x 202 mm |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| BULLETIN NUMBER | PB1 |
