Brand: Hoffman
|
SKU:
651984

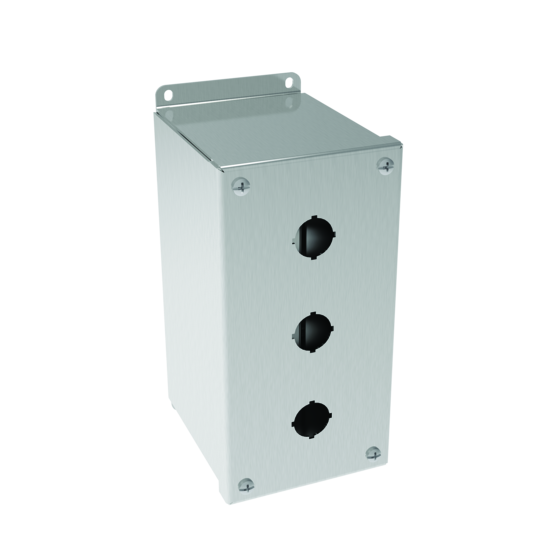

Hoffman E3PBGXSS | Extra-Deep Pushbutton Screw Cover, 4X, 3PB x 22.5mm, SS 304
Regular price
$823.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman E3PBGXSS | Extra-Deep Pushbutton Screw Cover, 4X, 3PB x 22....
Regular price
$823.45
Unit price
Description
Description
Designed to house 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dust, dirt, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons.
Main Features
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated stainless steel cover screws thread into sealed wells
- Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Bonding provision on door; grounding nut on body
- Oil-resistant gasket
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997
- NEMA/EEMAC Type 4X, 12, 13
- CSA File Number 42186: Type 4, 4X, 12
- IEC 60529, IP66
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 4.75 in / 121 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Overall Dimensions | 9.00 x 4.22 in / 229 x 107 mm |
| Mounting | 8.50 x 3.13 in / 216 x 80 mm |
| Hole Quantity | 3 |
| Body Thickness | 14 ga / 1.98 mm |
| Color | Unpainted |
| Door Thickness | 16 ga / 1.59 mm |
| Finish | Brushed #4 |
| BULLETIN NUMBER | PB1S |
