Brand: Hoffman
|
SKU:
10202511

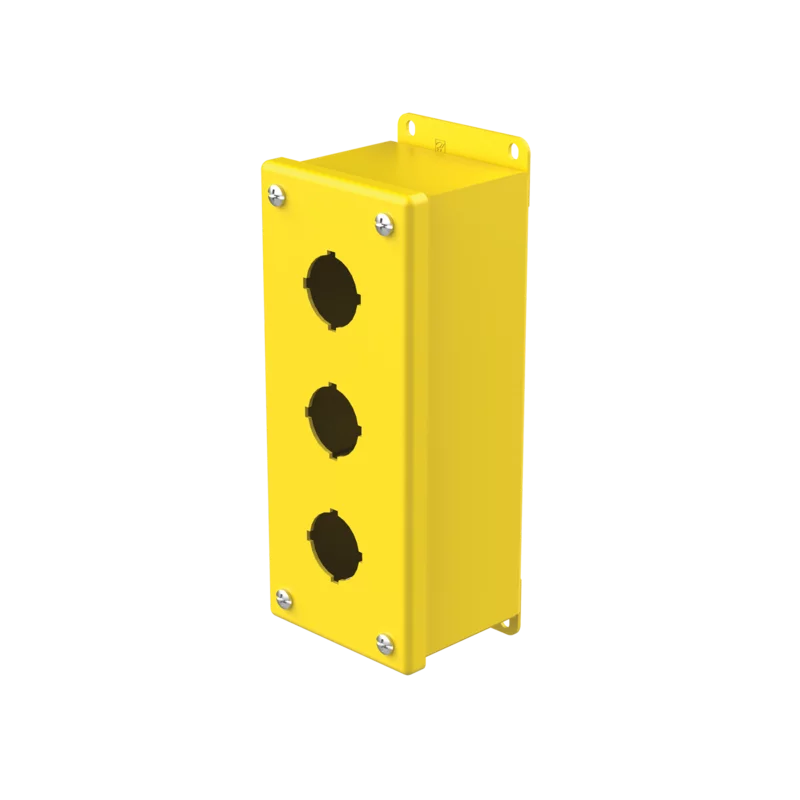

Hoffman E3PBY | Pushbutton Enclosures Type 12, 3PBx30.5mm, Safety Yellow, Steel
Regular price
$225.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman E3PBY | Pushbutton Enclosures Type 12, 3PBx30.5mm, Safety Y...
Regular price
$225.05
Unit price
Description
Description
Hoffman E3PBY | Pushbutton Enclosures Type 12, 3PBx30.5mm, Safety Yellow, Steel
These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.
Hoffman - E3PBY - Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
- BULLETIN NUMBER: PB1
- Industry Standards:
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- IEC 60529, IP65
Specifications
Specifications
Hoffman - E3PBY - Product Categories
- Industrial
- Industrial Terminal and Junction Boxes
- Pushbutton Enclosures
Hoffman - E3PBY - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | E3PBY |
| Item Description | Pushbutton Enclosures Type 12, 3PBx30.5mm, Safety Yellow, Steel |
| Height | 8 in / 203 mm |
| Width | 3.25 in / 83 mm |
| Depth | 2.75 in / 70 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | OSHA Safety Yellow |
| Thickness | 14 ga / 1.9 mm |
| Hole Quantity | 3 |
| Overall Dimensions | 9.00 x 3.47 in / 2.29 x 88 mm |
| Mounting | 8.50 x 2.38 in / 216 x 60 mm |
| Hole Size | 30.5 mm |
| Weight | 2.9 lb |
