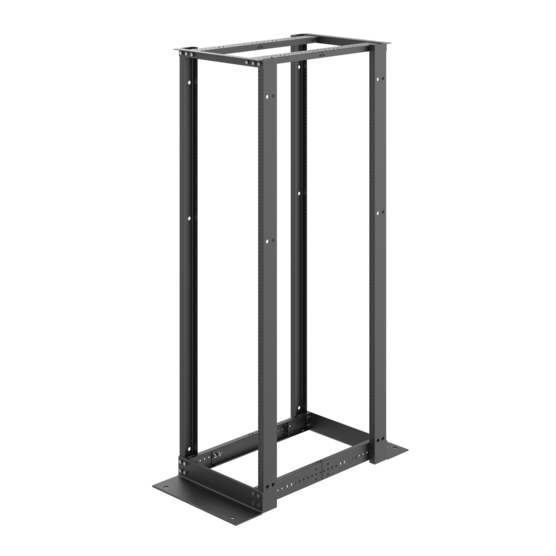

Hoffman E4DR19FM38U | 4-Post Open Frame Rack, 72.00x20.25, 38U, Black, Aluminum, Tapped
Regular price
$1,207.94
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman E4DR19FM38U | 4-Post Open Frame Rack, 72.00x20.25, 38U, Bla...
Regular price
$1,207.94
Unit price
Brand: Hoffman
|
SKU:
9886747
Regular price
$1,207.94
Unit price
Description
Description
4-Post Open Frame Racks combine the mounting security of a cabinet with the accessibility of a rack. Used in communication data center and telecommunication room applications, these adjustable-depth racks support deeper, heavier network equipment and can be ganged with standard 2-post or other 4-post racks to expand existing systems.
Main Features
- Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
- EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
- Compatible with 19-in. rack accessories
- Available with nominal frame height of 6, 7 and 8 feet
- RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
- Floor mounting holes predrilled at .750-inch diameter
- 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
- For square hole model, order screws and cage nuts separately
- Can be ganged with both 2- and 4-Post Open Frame racks
- Includes complete assembly instructions
- Shipped unassembled for convenient transport to job site
- Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
- Uprights on the square-hole model are made from 12 gauge steel
- Top and bottom angles made of extruded aluminum (6063-T6 alloy)
Specifications
Specifications
Industry Standards
- UL 2416 Listed; File No. E230874
- cUL Listed per CSA C22.2 No. 182.4; File No. E230874
- EIA 310-D
Related Accessories
- Catalog #: E4PKIT
- Catalog #: E4FBKIT
Specifications
| Height | 71.88 in / 1826 mm |
|---|---|
| Width | 20.25 in / 514 mm |
| Material | Aluminum |
| Mounting Hole Type | Tapped |
| Rack Units | 38 |
| Nominal Frame Height | 6 ft |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 0.14 ga / 3.5 mm |
| Weight | 64 lb |
| BULLETIN NUMBER | DOFR4 |
