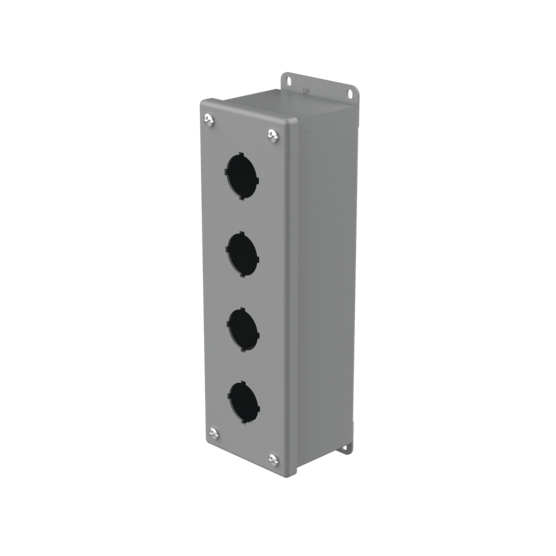

Hoffman E4PB | Pushbutton Enclosure Type 12, 4PB x 30.5mm, Gray, Steel
Regular price
$218.70
Unit price
Brand: Hoffman
|
SKU:
615340
Regular price
$218.70
Unit price
Description
Description
These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.
Main Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA File Number 42186: Type 12
- IEC 60529, IP65
Hoffman On Demand Alternatives
- Catalog #: E4PBG
- Catalog #: E4PB
- Catalog #: E3PBG
- Catalog #: E3PB
- Catalog #: E2PBG
- Catalog #: E2PB
- Catalog #: E1PBG
- Catalog #: E1PB
Specifications
| Height | 10 in / 254 mm |
|---|---|
| Width | 3.25 in / 83 mm |
| Depth | 2.75 in / 70 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Mild Steel |
| Hole Quantity | 4 |
| Overall Dimensions | 11.25 x 3.47 in / 286 x 88 mm |
| Mounting | 10.75 x 2.38 in / 273 x 60 mm |
| Hole Size | 30.5 mm mm |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| BULLETIN NUMBER | PB1 |
