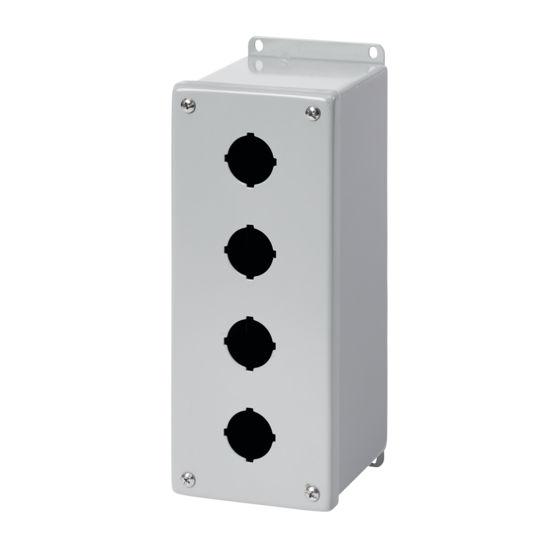

Hoffman E4PBXM4 | Extra-Deep Pushbutton Enclosure Type 4, 4PBx22.5mm 10x4x4.75in, Gray, Steel
Regular price
$296.25
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman E4PBXM4 | Extra-Deep Pushbutton Enclosure Type 4, 4PBx22.5m...
Regular price
$296.25
Unit price
Brand: Hoffman
|
SKU:
9886751
Regular price
$296.25
Unit price
Description
Description
Extra-Deep Pushbutton Enclosures, designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, feature stainless steel screws and a high-performance polyurethane gasket to meet Type 4 environmental protection rating. The added depth accommodates additional pushbutton contact blocks.
Main Features
- Seams continuously welded and ground smooth
- Captivated stainless steel cover screws thread into sealed wells
- Grounding stud on body
- Bonding provision on cover
- High-performance polyurethane gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 5.00 in. (152 x 102 x 127 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- 30.5-mm or 22.5-mm size holes
- External wall-mounting brackets
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- NEMA/EEMAC Type 4, 12
- CSA File Number 42186: Type 4, 12
- IEC 60529, IP66
Hoffman On Demand Alternatives
- Catalog #: E4PBXM4
- Catalog #: E4PBX4
- Catalog #: E3PBXM4
- Catalog #: E3PBX4
- Catalog #: E2PBXM4
- Catalog #: E2PBX4
- Catalog #: E1PBXM4
- Catalog #: E1PBX4
Specifications
| Height | 10 in / 254 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 4.75 in / 121 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Hole Size | 22.5 mm mm |
| Hole Quantity | 4 |
| Mounting | 10.50 x 3.12 in / 267 x 79 mm |
| Overall Dimensions | 11.00 x 4.22 in / 279 x 107 mm |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| BULLETIN NUMBER | PB1 |
