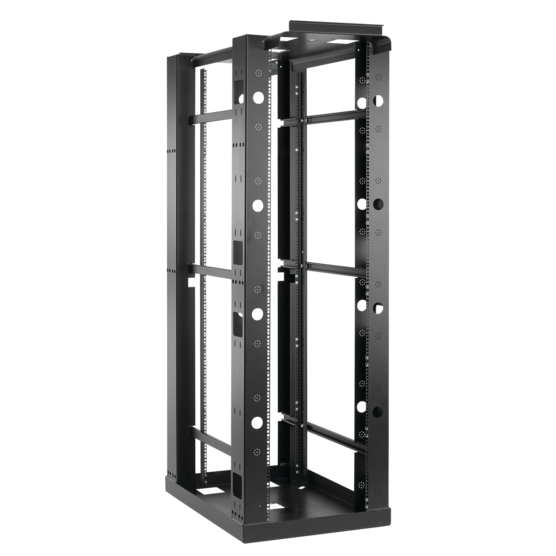

Hoffman E4SDR19FM45U | Seismic 4-Post Open-Frame Rack, 19" x 4...
Regular price
$5,311.66
Unit price
Brand: Hoffman
|
SKU:
324594
Regular price
$5,311.66
Unit price
Description
Description
Seismic 4-Post Open Frame Racks combine the mounting security of a cabinet with the accessibility of a rack. Used in communication data center and telecommunication room applications that are subject to seismic activity or vibration, these adjustable-depth racks support deeper, heavier network equipment and can be ganged with standard 2-post or other 4-post racks to expand existing systems.
Main Features
- Rack is fully welded for maximum rigidity
- EIA universal 5/8 - 5/8 - 1/2 in. spaced square holes fit 19-inch rack equipment and accessories
- Rear rack angle adjustable 0 to 39.09 inch (0 to 993 mm)
- Nominal height is 7 feet (2.1 m)
- Can be ganged with both 2- and 4- post open frame racks
- Integral front waterfall top
- Pre-drilled holes on top to ease runway installation
- Top and bottom cable entry cutouts
- Ground provision with ground symbol
- Full complement of matching components for equipment and cable management
Specifications
Specifications
Industry Standards
- UL 2416 Listed; File No. E230874, 2500 lb. (1134 kg) rated load
- cUL C22.2 No. 182.4 Listed; File No. E230874
- NEBS -Telcordia GR-63-CORE Zone 4: Tested with 1000 lb. (453.6
- kg) of equipment installed
- EIA 310-D
- OSHPD Pre-Approval OPM-0199-13
Related Accessories
- Catalog #: AS1032
- Catalog #: P1032CN
- Catalog #: ESBDK
- Catalog #: P19SH68
- Catalog #: P19SH68B
- Catalog #: P19VSH68B
- Catalog #: P19SH810
- Catalog #: P19SH810B
Specifications
| Height | 86.02 in / 2185 mm |
|---|---|
| Width | 26.75 in / 679 mm |
| Depth | 39.87 in / 1013 mm |
| Material | Mild Steel |
| Rack Units | 45 |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 10 ga / 3.4 mm |
| Weight | 376 lb |
| BULLETIN NUMBER | DOFRS |
