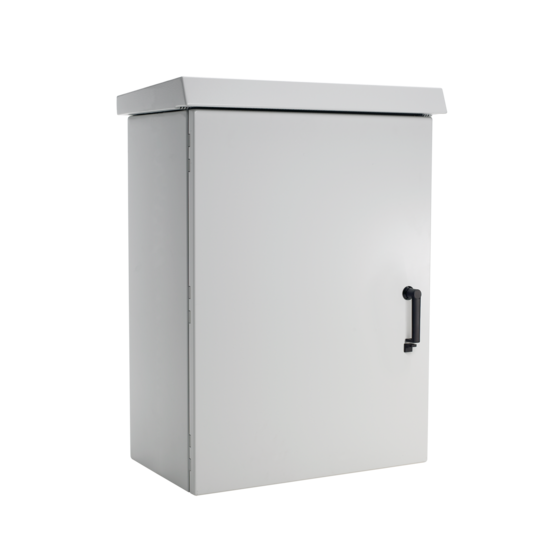

Hoffman ECL606050P | ComLine OSP Package, Type 4X, 600x600x500mm, A...
Regular price
$6,164.84
Unit price
Brand: Hoffman
|
SKU:
939720
Regular price
$6,164.84
Unit price
Description
Description
A complete, off-the-shelf package for 19-inch rack equipment, lightweight ComLine OSP Wall-Mount Cabinets are constructed of corrosion-resistant aluminum with a foam-in-place gasket that secures and protects sensitive equipment in outdoor applications. Available with or without back-up battery compartment.
Note – SR20 and SR2 are for indoor use only
Main Features
- Solar shield helps keep enclosure interior cool when cabinet is installed outdoors and directs liquids away from cabinet opening; can be removed for indoor installations
- Foam-in-place gasket provides environmental seal
- Padlocking L-Handle provides a tight, secure door seal
- Doorstop holds door in place during service for easier and faster maintenance
- Heavy-duty hinged door is easily removed to facilitate equipment installation and removal; maximum door load 50 lb. (22.7 kg)
- Rack angles adjustable front-to-rear of cabinet
- Gland plates available with cutouts that fit HOFFMAN T15, T20 and CR23 air conditioners and HOFFMAN XR20 and XR29 heat exchangers (Indoor use only)
- Radius corners on cabinet eliminate sharp edges
- Stainless steel fasteners resist corrosion to maintain professional appearance
- Pole mounting kits available for all sizes
- Pad mounting plinth available for 600mm deep cabinets
- Battery compartment has front vented captivated door
- Rack angles have EIA universal standard square hole spacing
- Body includes studs for ground bar and rear mounting studs for wood panel
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12; File No. E61997
- CSA: Type 3, 3R, 4, 4X, 12
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12
- EC60529, IP66
- Designed to meet Telcordia NEBS GR-487, GR-63 and IEC 48D
Related Accessories
- Catalog #: EP6060AL
- Catalog #: E60P60W
- Catalog #: ERA196S
- Catalog #: EPMC6
- Catalog #: EGPS1
- Catalog #: EGPACT15
- Catalog #: ELHP
- Catalog #: EPL4
Specifications
| Height | 23.62 in / 600 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 19.68 in / 500 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3; NEMA Type 3R; IP66 |
| Material | Aluminum |
| Rack Units | 12 |
| Body Thickness | 0.125 in / 3 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Door Thickness | 0.1 in / 2.5 mm |
| Finish | Powder Coated |
| Weight | 75 lb |
| BULLETIN NUMBER | DCOM |
