Brand: Hoffman
|
SKU:
9886815

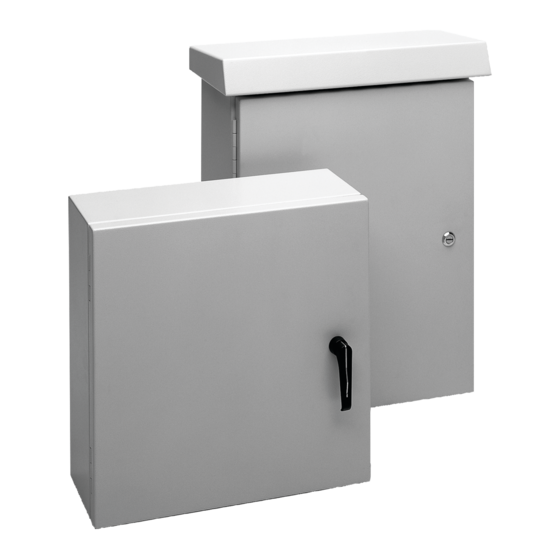

Hoffman ECL806020CH | ComLine, Type 4X, 800x600x200mm, Gray, Aluminum, Continuous Hinge
Regular price
$4,595.54
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ECL806020CH | ComLine, Type 4X, 800x600x200mm, Gray, Alumin...
Regular price
$4,595.54
Unit price
Brand: Hoffman
|
SKU:
9886815
Regular price
$4,595.54
Unit price
Description
Description
Lightweight, corrosion-resistant ComLine aluminum wall-mount enclosures provide long-lasting protection for housing electrical components in extreme outdoor environments. These customizable enclosures employ a foam-in-place gasket for a tight seal and are ideal for rooftop or tower-mounted telecommunications applications.
Main Features
- Bonding provision on door; ground stud on body
- Seams continuously welded and ground smooth for a finished appearance
- Foam-in-place seamless gasket for superior protection against dust and liquid ingress
- 1- or 3-point latching (screwdriver slot), depending on door size
- Optional door stop/wind latch holds door in place during service
- Two door/hinge styles available
- Easily removable door with hidden hinge and retaineing hinge pin
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12; File No. E61997
- CSA File No. 42186: Type 3, 3R, 4, 4X, 12
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12
- IEC 60529, IP66
- Designed to meet NEBS-Telcordia GR487, GR63, IEC 48D
Related Accessories
- Catalog #: ESSH6020
- Catalog #: EP8060AL
- Catalog #: EDSK
- Catalog #: ELHP
- Catalog #: EPL4
- Catalog #: DL36
- Catalog #: AN1032
- Catalog #: ANM5
Specifications
| Height | 31.5 in / 800 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 7.87 in / 200 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3; NEMA Type 3R; IP66 |
| Material | Aluminum |
| Door Thickness | 2 mm / 0.08 in |
| Latch Points | 3 |
| Package Weight | 27 lb |
| Body Thickness | 0.08 in / 2 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| BULLETIN NUMBER | DCOM |
